Removal and Installation of Rear Wiper Motor: Installation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not drop the wiper motor or cause it to contact other parts.

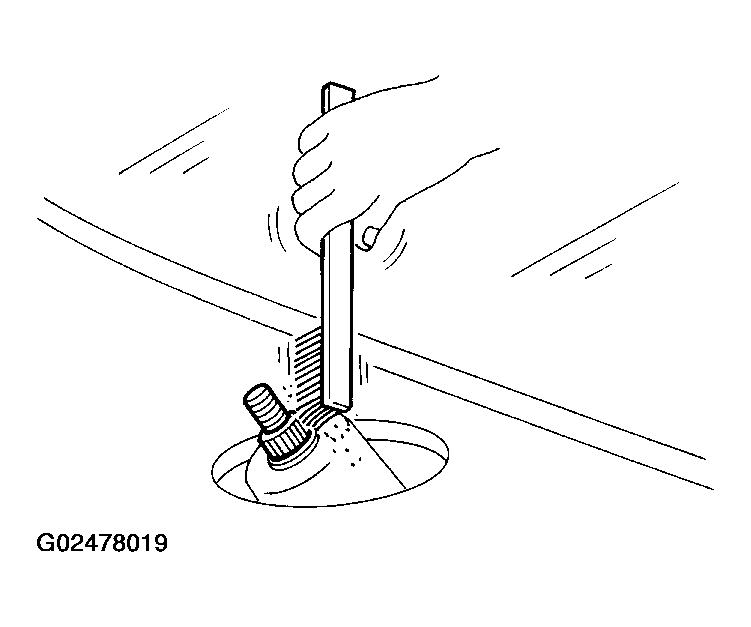

Clean up the pivot area as illustrated. This will reduce possibility of wiper arm looseness.

Fig 1: Cleaning Wiper Arm Pivot Area
Courtesy of NISSAN MOTOR CO., U.S.A.
Install rear wiper motor to the vehicle.
Attach pivot cap.
Connect rear wiper motor connector.
Install back door finisher lower. Refer to REMOVAL AND INSTALLATION .
Attach wiper arm. Refer to REMOVAL AND INSTALLATION OF REAR WIPER ARM .
