Removal and Installation of Rear Washer Nozzle: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove back door finisher upper. Refer to REMOVAL AND INSTALLATION .
  2. Remove rear washer tube from nozzle.
  3. Release retaining clips and remove washer nozzle.

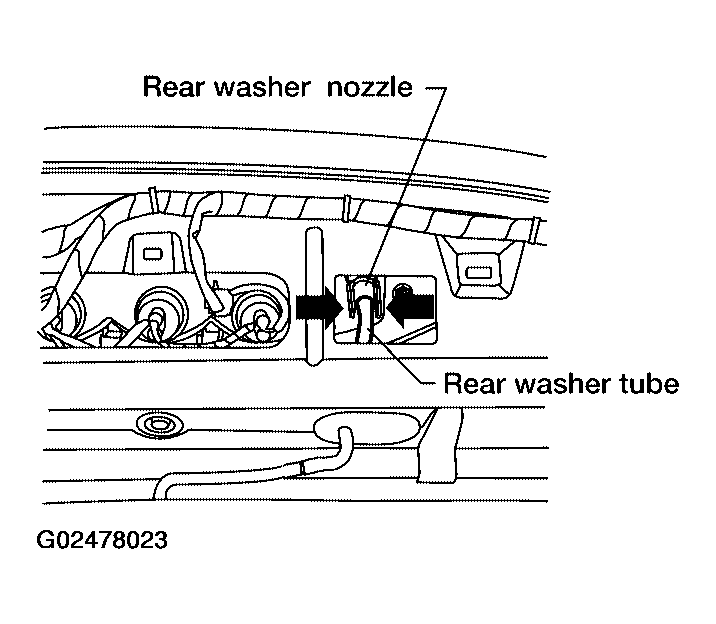

    Fig 1: Removing Rear Washer Nozzle
    G02478023Courtesy of NISSAN MOTOR CO., U.S.A.
