Section 1503 (Wiper, Washer & Horn)
>>
Rear Wiper And Washer System
>>
Rear Washer Tube Layout
Rear Washer Tube Layout
WARNING:
This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

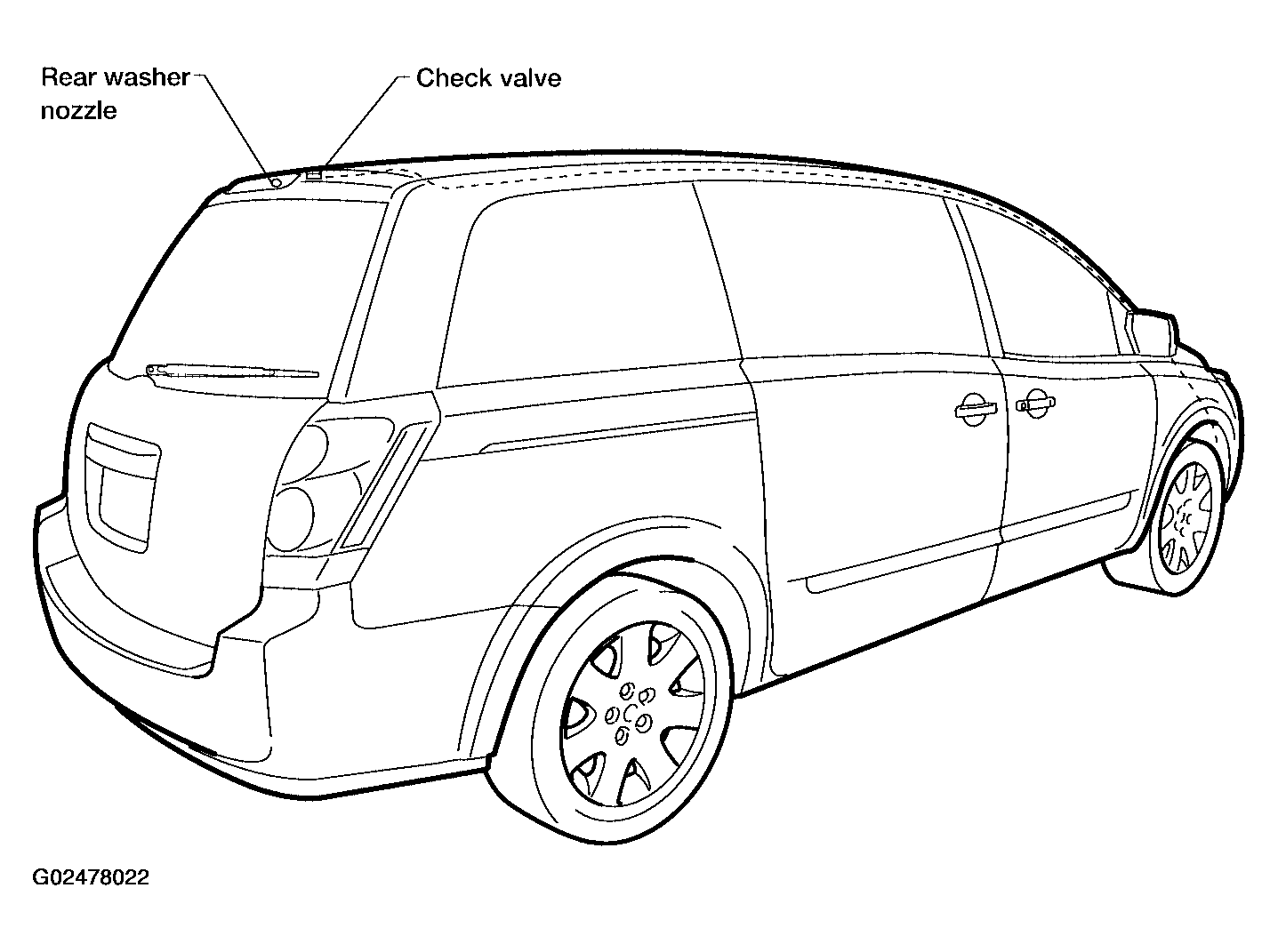

Fig 1: Identifying Rear Washer Tube Layout
Courtesy of NISSAN MOTOR CO., U.S.A.
