Rear Washer Nozzle Adjustment

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Adjust washer nozzle with suitable tool as shown in the figure.
Adjustable range: +/-15+/- (In any direction)

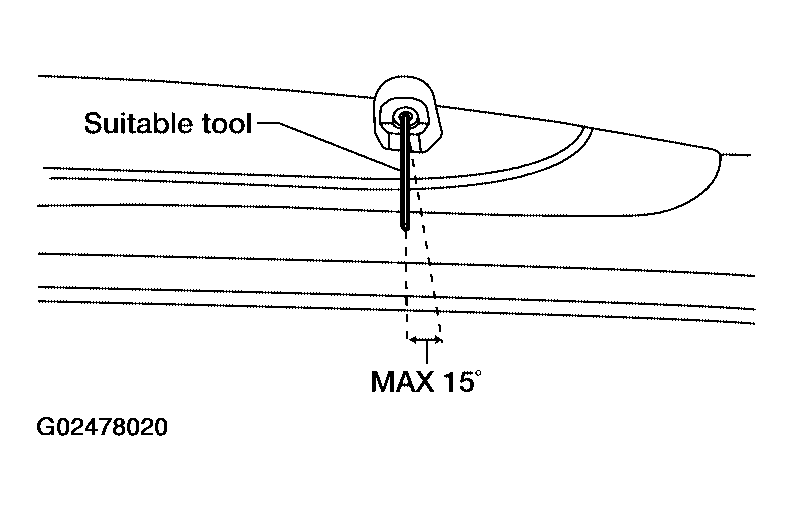

Fig 1: Adjusting Rear Washer Nozzle
Courtesy of NISSAN MOTOR CO., U.S.A.

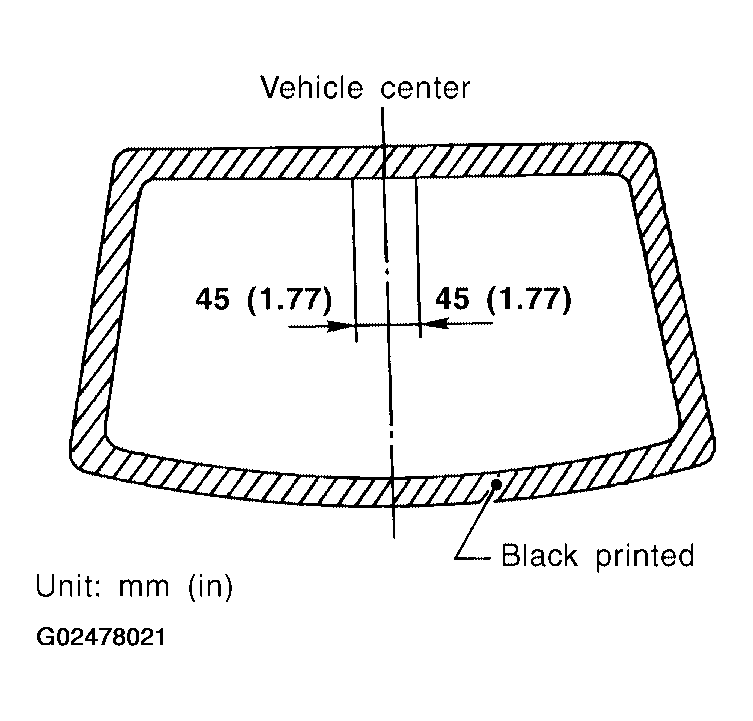

Fig 2: Measuring Rear Washer Nozzle Adjustment Distances
Courtesy of NISSAN MOTOR CO., U.S.A.
