Only Rear Wiper Intermittent Does Not Operate

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK COMBINATION SWITCH INPUT SIGNAL
Select "BCM" on CONSULT-II. With "WIPER" data monitor, make sure "RR WIPER INT" turns ON-OFF according to operation of wiper switch.

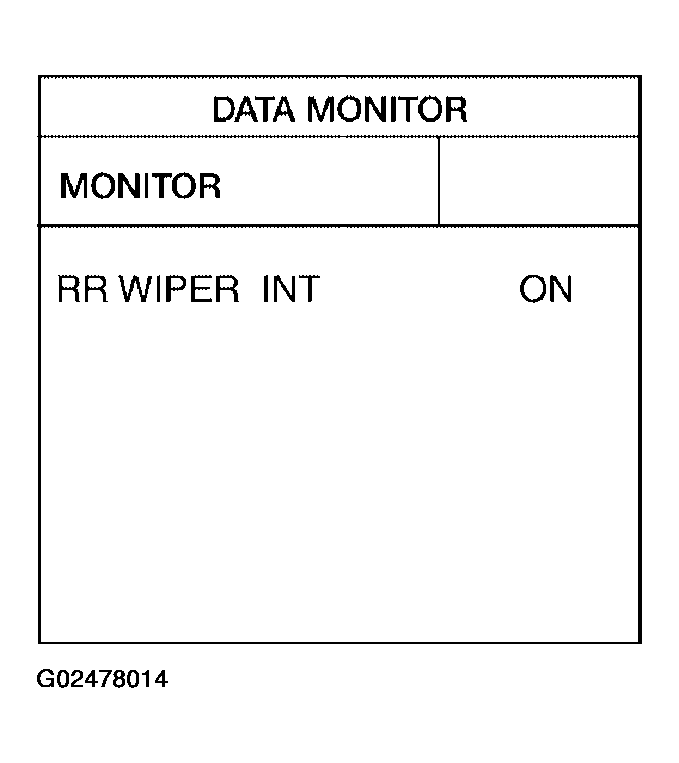

Fig 1: CONSULT-II Display - DATA MONITOR
Courtesy of NISSAN MOTOR CO., U.S.A.

When rear wiper switch is in INT position: RR WIPER INT ON

OK or NG
- OK: Replace BCM. Refer to REMOVAL AND INSTALLATION OF BCM .
- NG: Check the wiper switch. Refer to COMBINATION SWITCH READING FUNCTION .
