Removal and Installation of Power Sockets: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal and Installation is common for all power sockets.
  1. Remove inner socket from the ring, while pressing the hook on the ring out from square hole.
  2. Disconnect power socket connector.
  3. Remove ring from power socket finisher while pressing pawls.

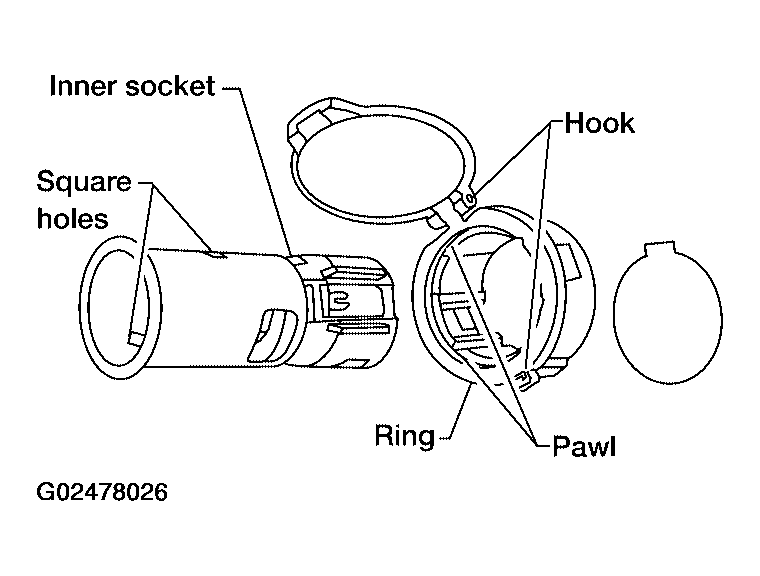

    Fig 1: Removing Power Socket
    G02478026Courtesy of NISSAN MOTOR CO., U.S.A.
