Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper. Refer to REMOVAL AND INSTALLATION - FRONT BUMPER .
  2. Disconnect horn connector.
  3. Remove horn bolt and remove horn from vehicle.

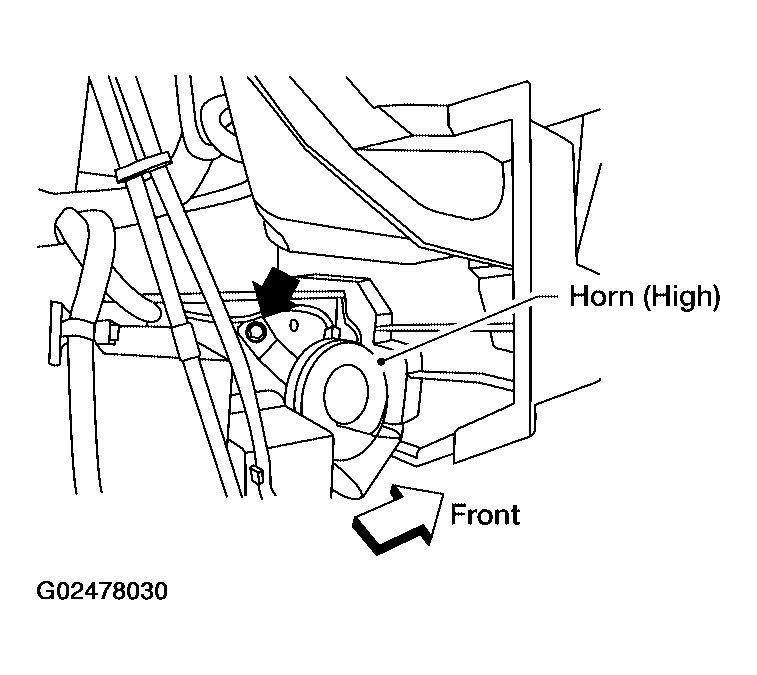

    Fig 1: Removing Horn Bolt
    G02478030Courtesy of NISSAN MOTOR CO., U.S.A.
