Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten horn bolt to specified torque.

    Horn bolt: 17 N.m (1.7 kg-m, 13 ft-lb)

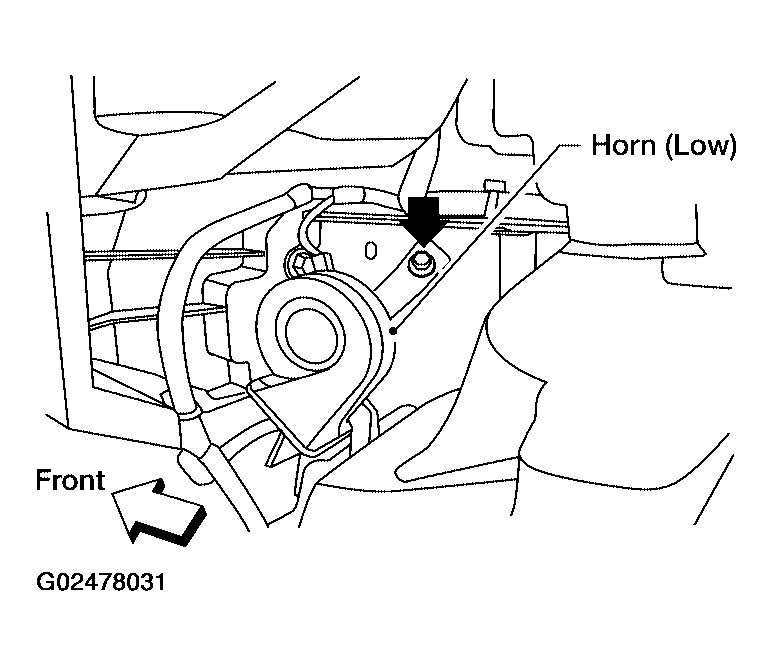

    Fig 1: Installing Horn Bolt
    G02478031Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Reconnect horn connector.
  3. Install front bumper. Refer to REMOVAL AND INSTALLATION - FRONT BUMPER .
