WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

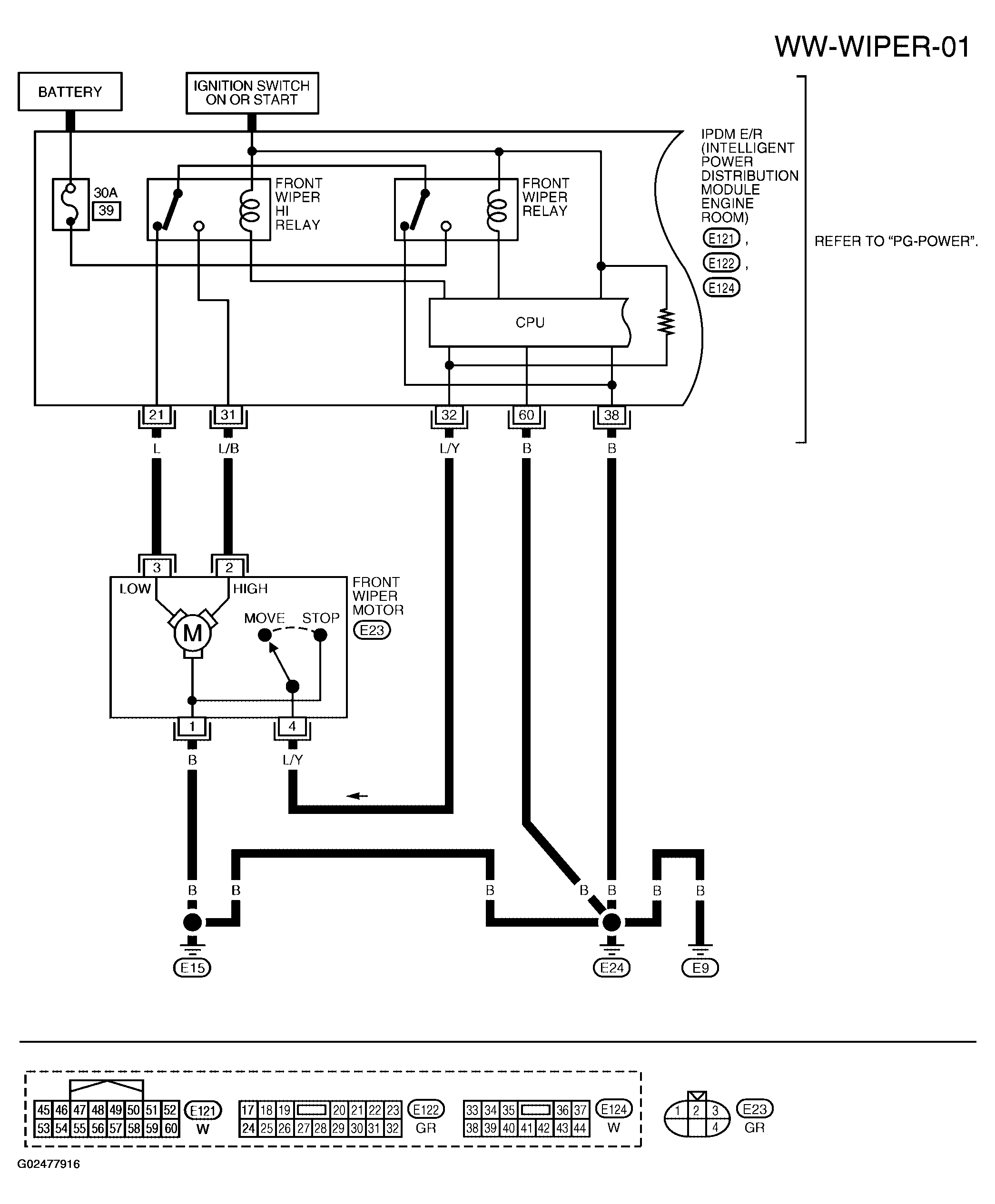

Fig 1: Wiring Diagram - Front Wiper & Washer System (1 OF 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

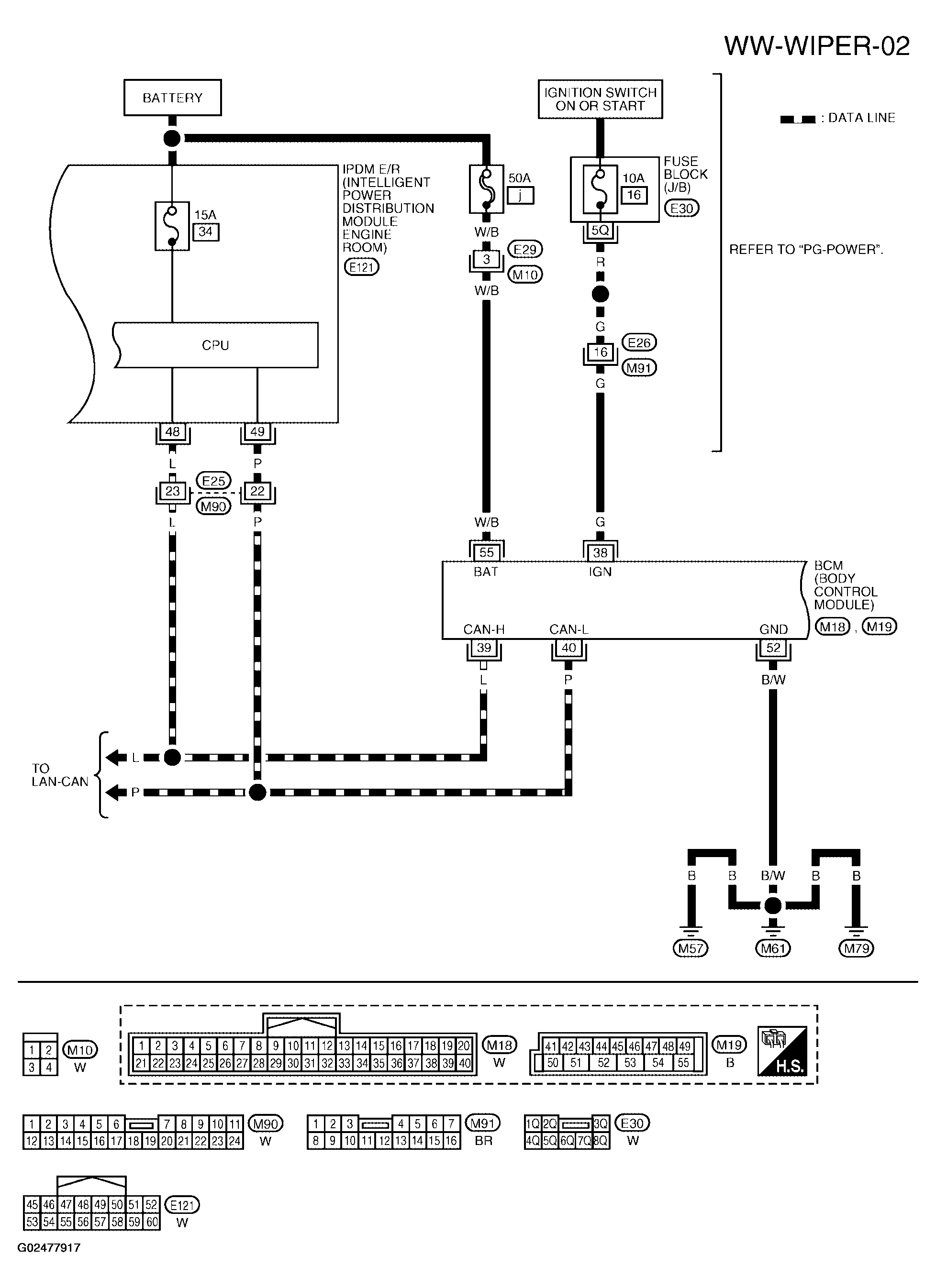

Fig 2: Wiring Diagram - Front Wiper & Washer System (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

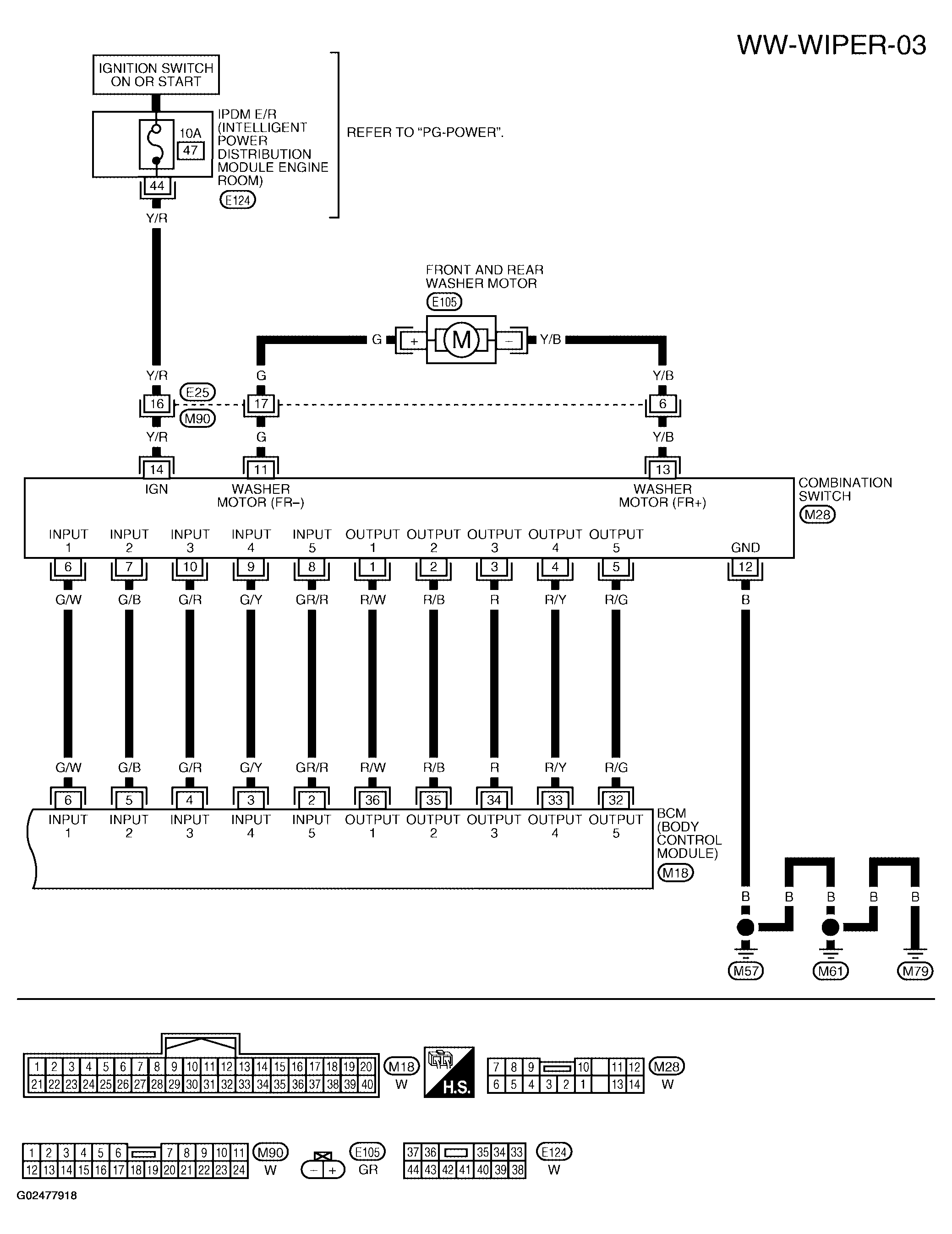

Fig 3: Wiring Diagram - Front Wiper & Washer System (3 Of 3)
