Inspection Procedure

With CONSULT-II

Select "IPDM E/R" with CONSULT-II. With data monitor, confirm that "WIP AUTO STOP" changes from "ACT P" to "STOP P" according to wiper operation.

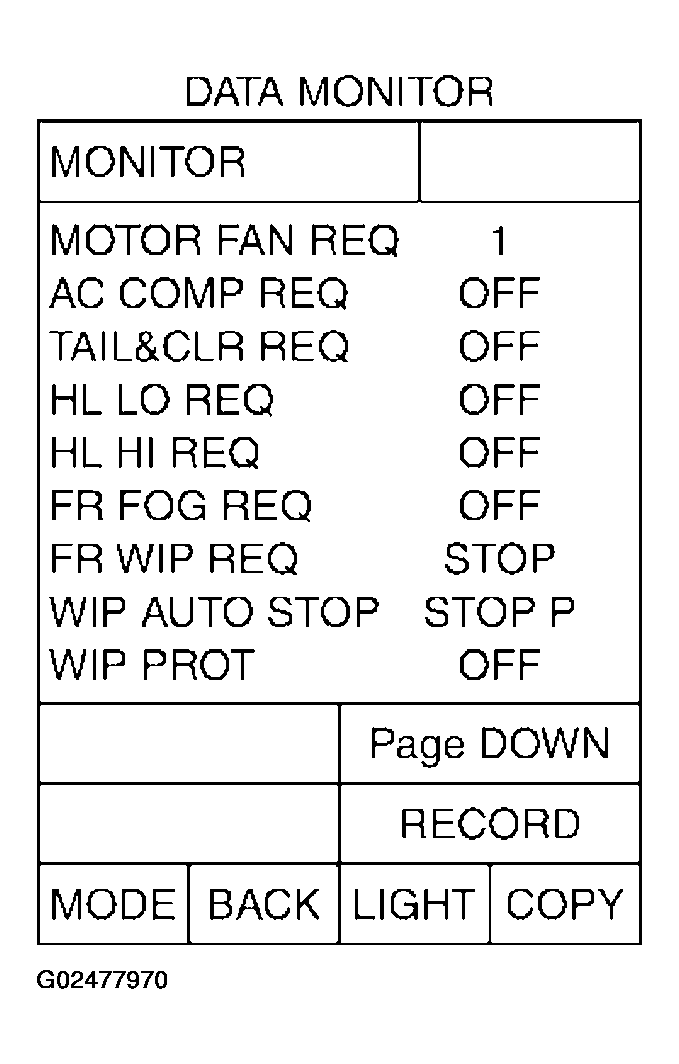

Fig 1: CONSULT-II Display - DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

GO TO 2.

OK or NG

• OK: Replace IPDM E/R. Refer to REMOVAL AND INSTALLATION OF IPDM E/R .
• NG: GO TO 2.

1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connector.
3. Check continuity between IPDM E/R harness connector terminal 32 and front wiper motor harness connector terminal 4.

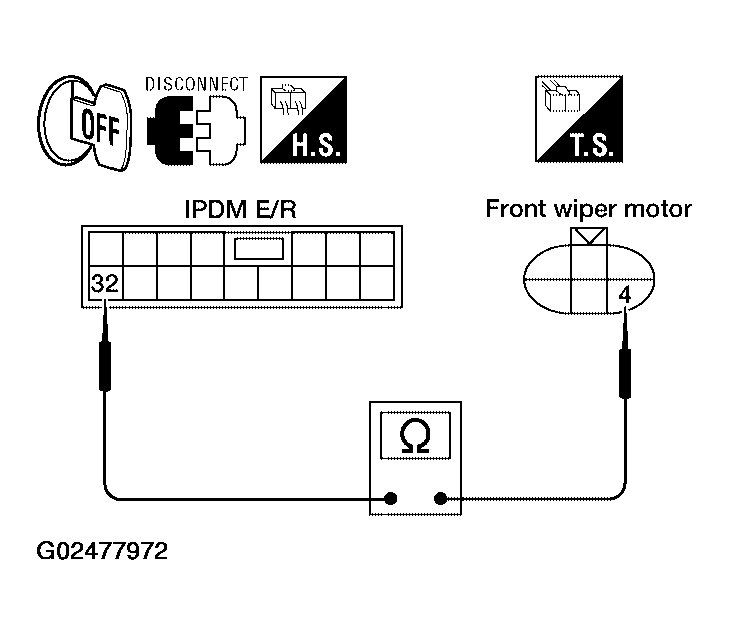

   Fig 2: Checking Continuity Between IPDM E/R Harness Connector Terminal 32 & Front Wiper Motor Harness Connector Terminal 4

   Courtesy of NISSAN MOTOR CO., U.S.A.

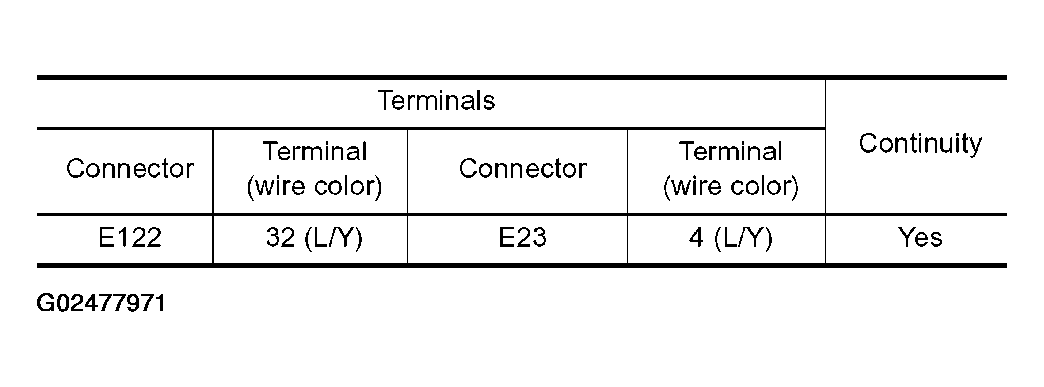

   Fig 3: Terminals & Continuity Condition Chart - IPDM E/R Harness Connector Terminal 32 & Front Wiper Motor Harness Connector Terminal 4

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check continuity between IPDM E/R harness connector terminal 32 and ground.

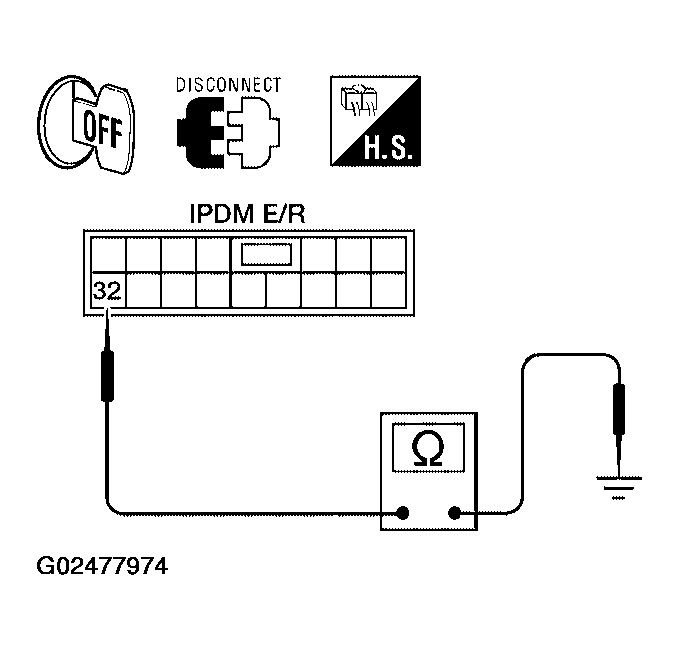

   Fig 4: Checking Continuity Between IPDM E/R Harness Connector Terminal 32 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

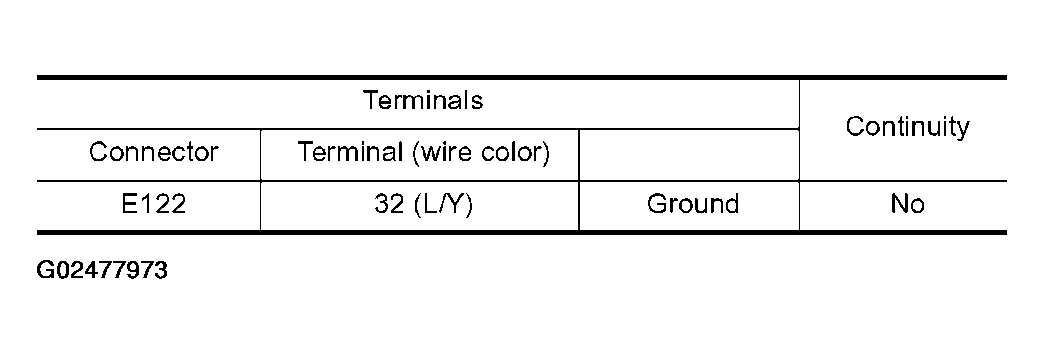

   Fig 5: Terminals & Continuity Condition Chart - IPDM E/R Harness Connector Terminal 32 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: Connect connectors. GO TO 3.
• NG: Repair harness or connector.

While front wiper motor is stopped and while operating, measure voltage between IPDM E/R terminal 32 and ground.

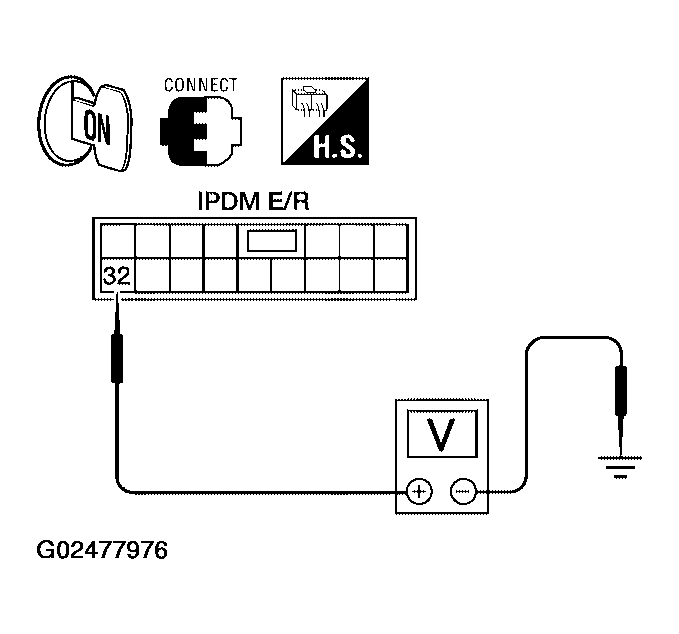

Fig 6: Measuring Voltage Between IPDM E/R Terminal 32 & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

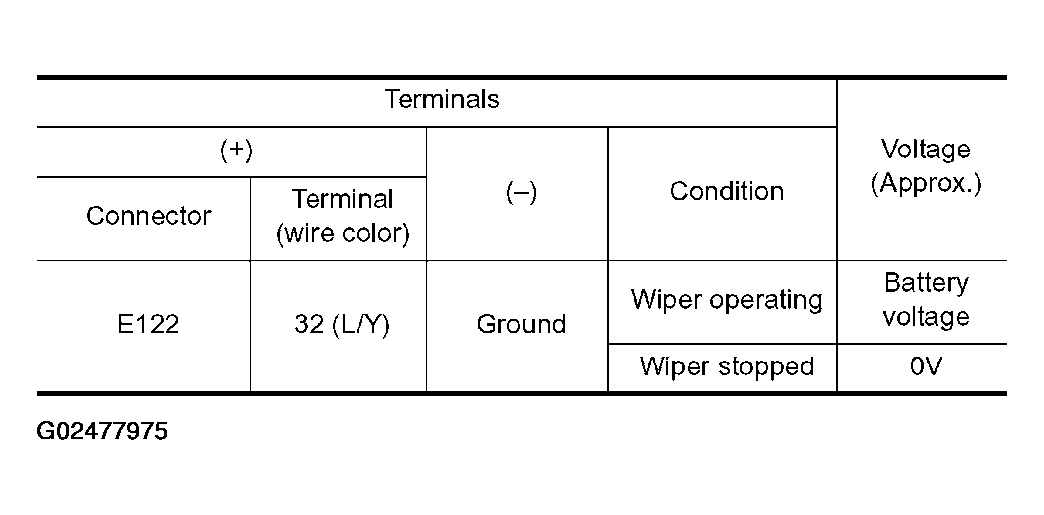

Fig 7: Terminals & Voltage Condition Chart - IPDM E/R Terminal 32 & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: Replace IPDM E/R. Refer to REMOVAL AND INSTALLATION OF IPDM E/R .
• NG: Replace front wiper motor. Refer to REMOVAL AND INSTALLATION OF WIPER MOTOR AND LINKAGE .
