Inspection Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. COMBINATION SWITCH TO BCM INSPECTION

    Select "BCM" on CONSULT-II. With "WIPER" data monitor, check that "INT VOLUME" changes in order from 1 to 7 according to operation of the intermittent switch dial position.

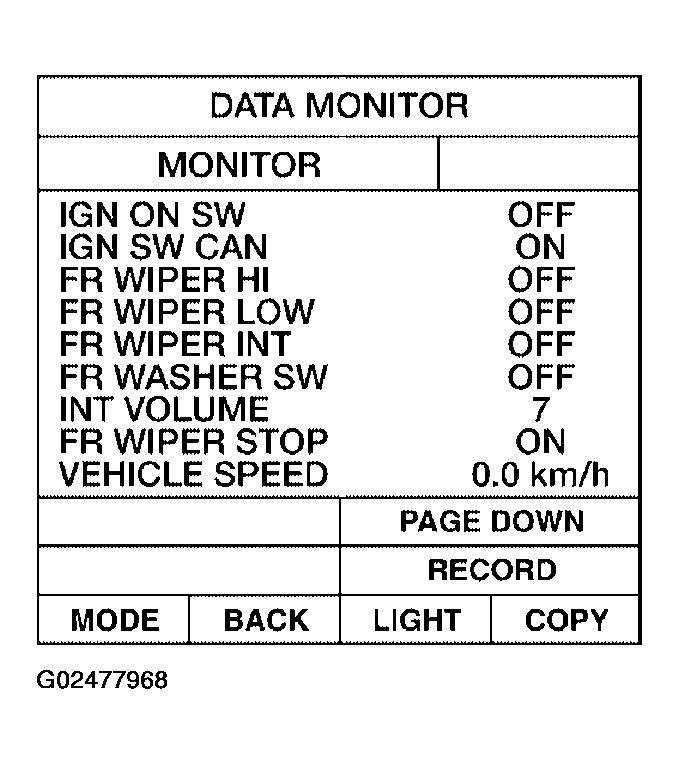

    Fig 1: CONSULT-II Display - DATA MONITOR
    G02477968Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG
