Operation Mode

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Combination switch reading function has operation modes shown below. See Fig 1.

Normal status
- When BCM is not in sleep status, OUTPUT terminals (1 -5) each turn ON-OFF every 10 ms.
Sleep status
- When BCM is in sleep status, transistors of OUTPUT 1 stop the output, and BCM enters low current consumption mode. OUTPUT (2, 3, and 4) turn ON-OFF every 10 ms, and only input from light switch system is accepted.

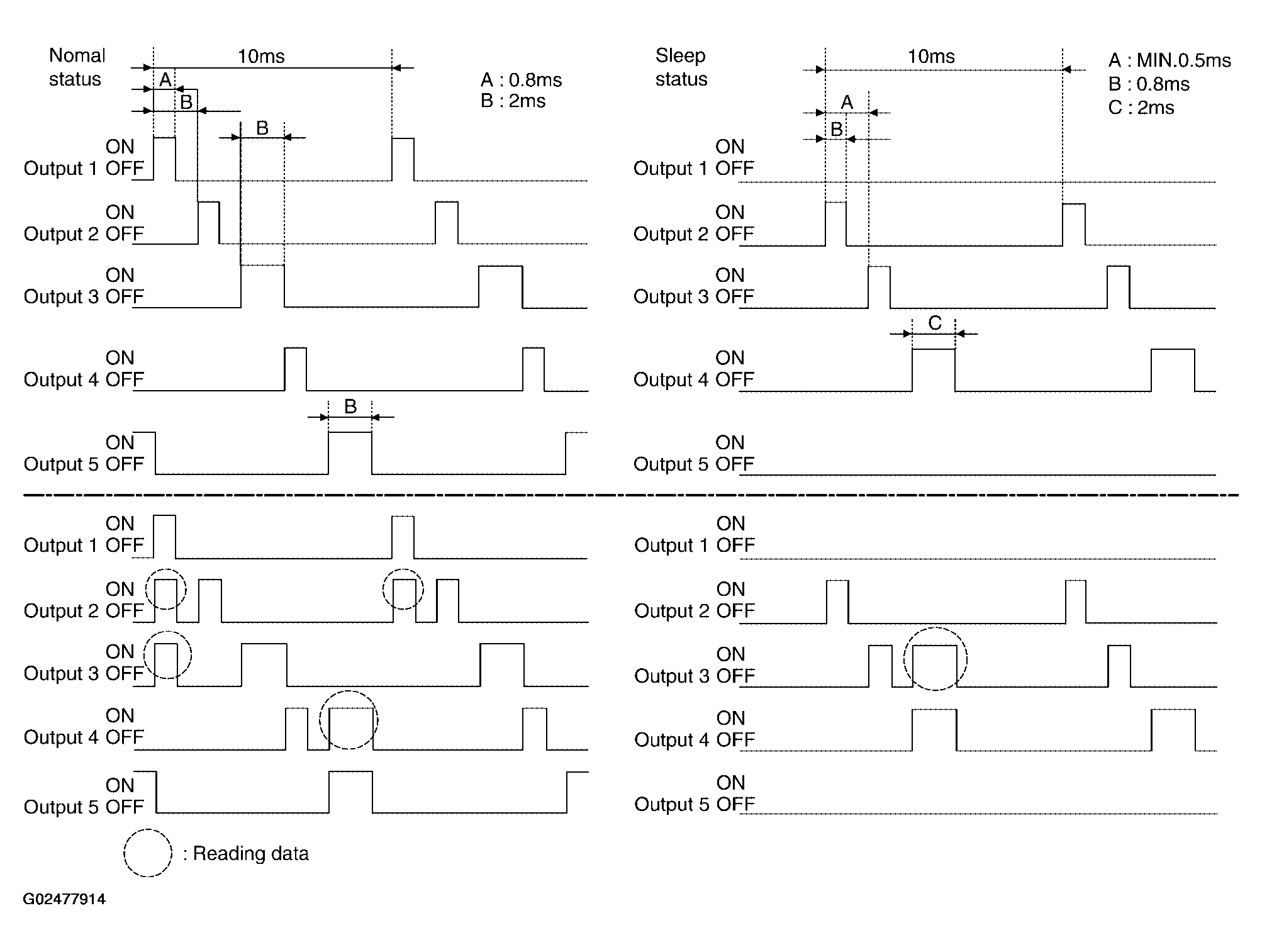

Fig 1: Combination Switch Operation Modes - Blinking Pattern

Courtesy of NISSAN MOTOR CO., U.S.A.
