Removal and Installation of Wiper and Washer Switch: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column covers.
  2. Remove wiper washer switch connector.
  3. Pinch tabs at wiper and washer switch base and slide switch away from steering column to remove.

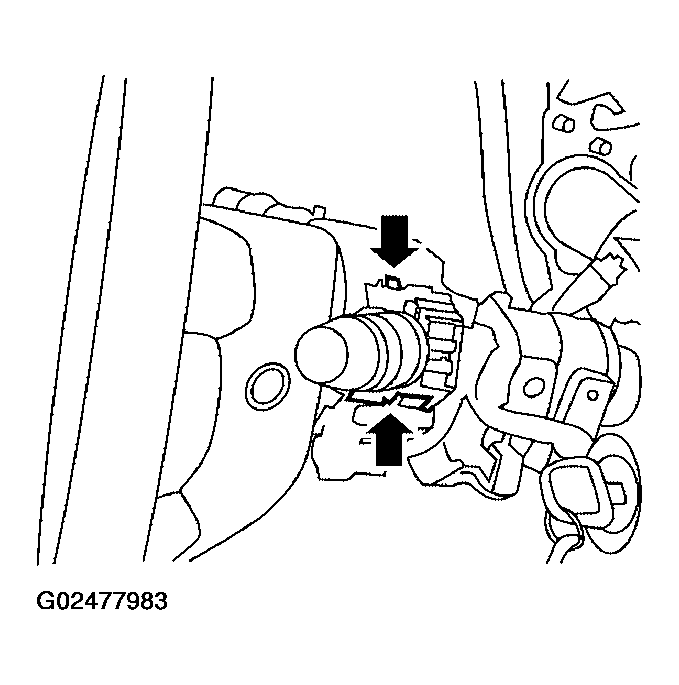

    Fig 1: Removing/Installing Wiper & Washer Switch
    G02477983Courtesy of NISSAN MOTOR CO., U.S.A.
