Removal and Installation of Washer Tank: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull out washer tank inlet.
  2. Remove fender protector. Refer to REMOVAL AND INSTALLATION
  3. Remove front and rear washer motor connector and washer fluid level sensor connector.
  4. Remove washer tank screws.
  5. Remove front and rear washer hoses, and remove the washer tank from the vehicle.

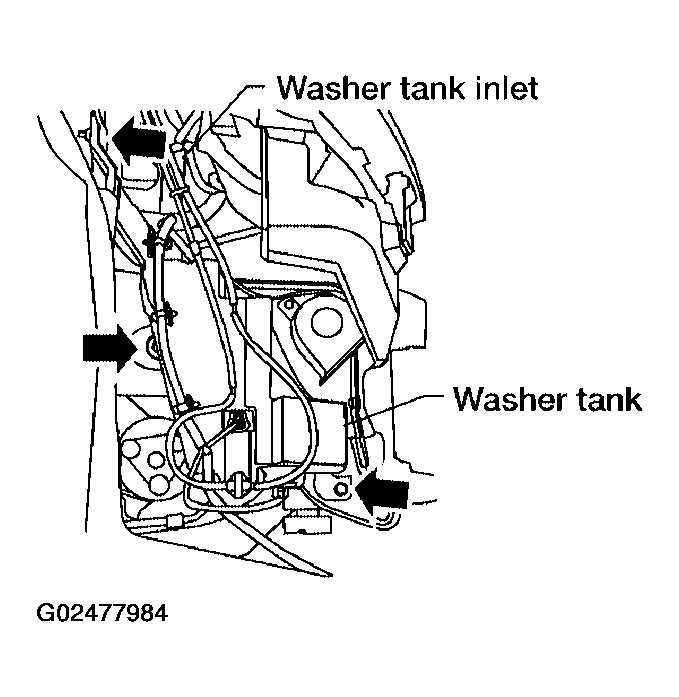

    Fig 1: Removing/Installing Washer Tank
    G02477984Courtesy of NISSAN MOTOR CO., U.S.A.
