Removal and Installation of Washer Motor: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fender protector. Refer to REMOVAL AND INSTALLATION .
  2. Remove front and rear washer motor connector and front and rear washer hoses.
  3. Pull out front and rear washer motor in the direction of the arrow as shown, and remove the front and rear washer motor from the washer tank.

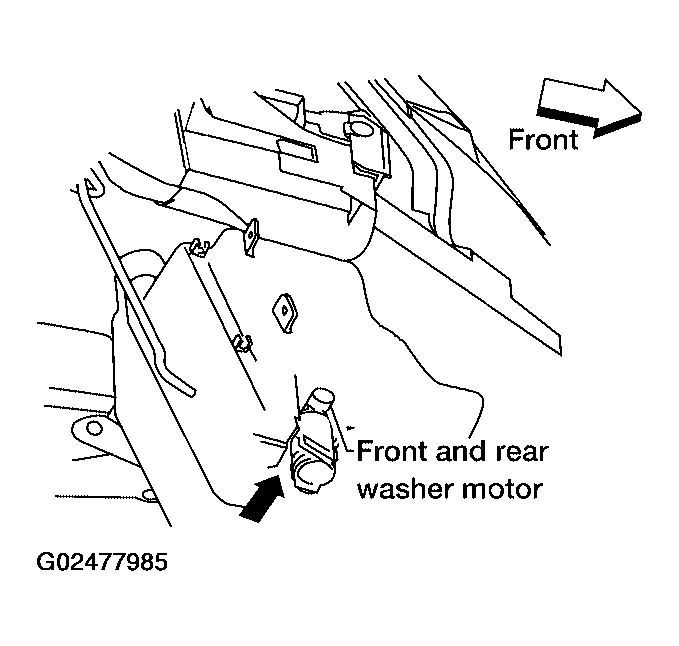

    Fig 1: Removing/Installing Washer Motor
    G02477985Courtesy of NISSAN MOTOR CO., U.S.A.
