Inspection For Power Supply And Ground Circuit

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Inspection procedure

CHECK FUSE

Check if wiper or washer fuse is blown.

FUSES REFERENCE TABLE - WIPER/WASHER SYSTEM

Unit	Power source	Fuse No.
Front and rear washer motor	Ignition ON or START	47
Front wiper relay	Battery	39
Unit	Power source	Fuse No.
BCM	Ignition ON or START	16
BCM	Battery	j

OK or NG

OK: GO TO 2.
NG: If fuse is blown, be sure to eliminate cause of problem before installing new fuse. Refer to POWER SUPPLY ROUTING CIRCUIT .

CHECK POWER SUPPLY CIRCUIT
1. Disconnect BCM connectors.
2. Check voltage between BCM harness connector terminals 38, 55 and ground.

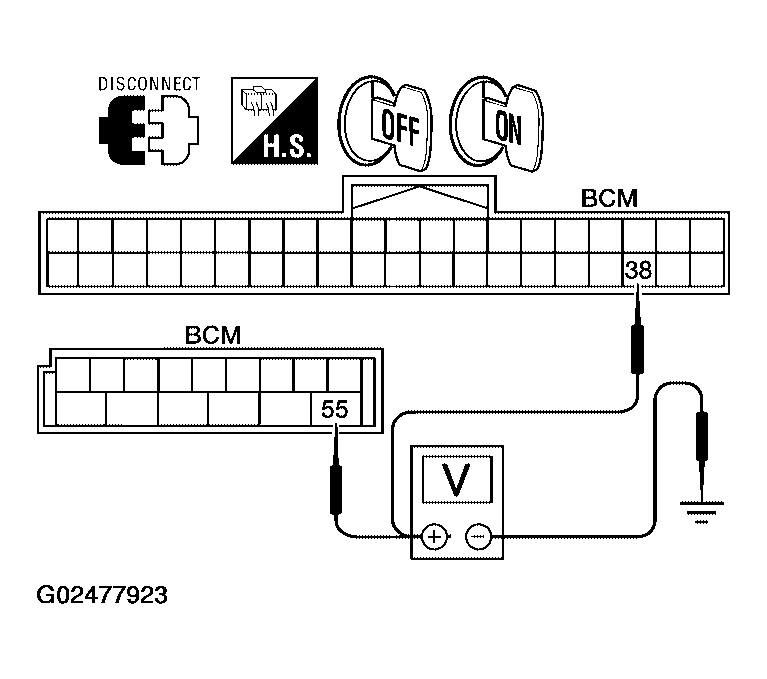

  Fig 1: Checking Voltage Between BCM Harness Connector Terminals 38, 55 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

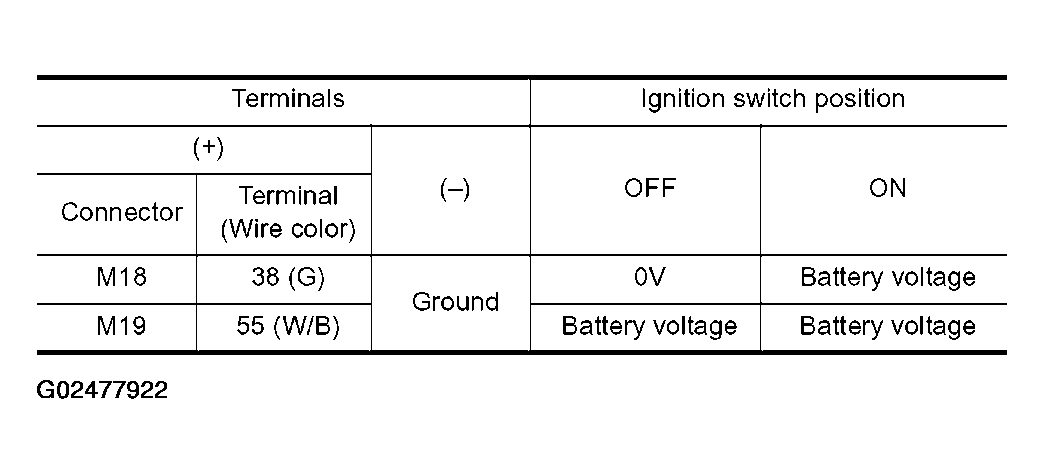

  Fig 2: Terminals & Voltage Condition Chart - Power Supply Circuit
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: GO TO 3.
- NG: Check harness for open or short between BCM and fuse.
GROUND CIRCUIT INSPECTION (BCM)
Check for continuity between the terminal 52 on BCM connector and ground.

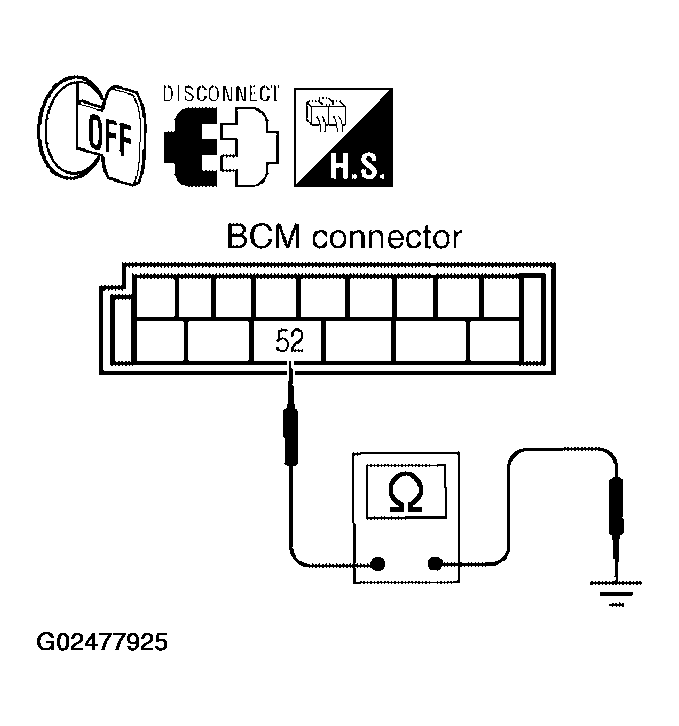

Fig 3: Checking Continuity Between BCM Connector Terminal 52 & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

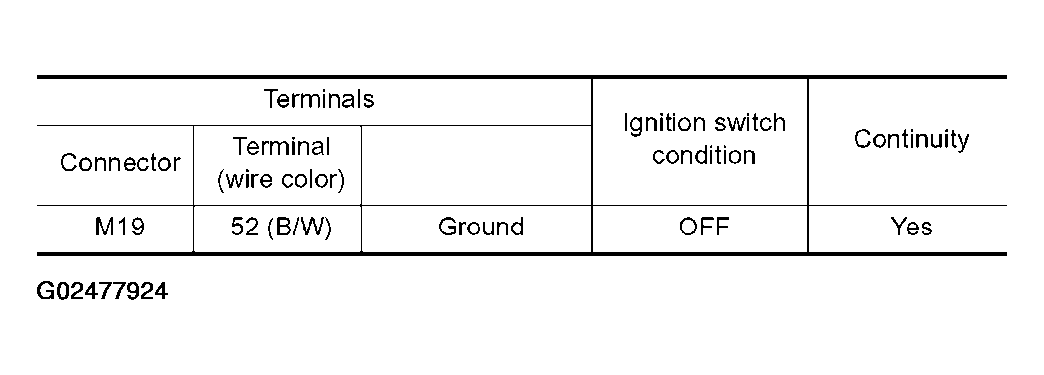

Fig 4: Terminals & Continuity Condition Chart - Ground Circuit Inspection (BCM)
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK: Inspection End.
- NG: Repair/replace BCM ground circuit.
