Removal and Installation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

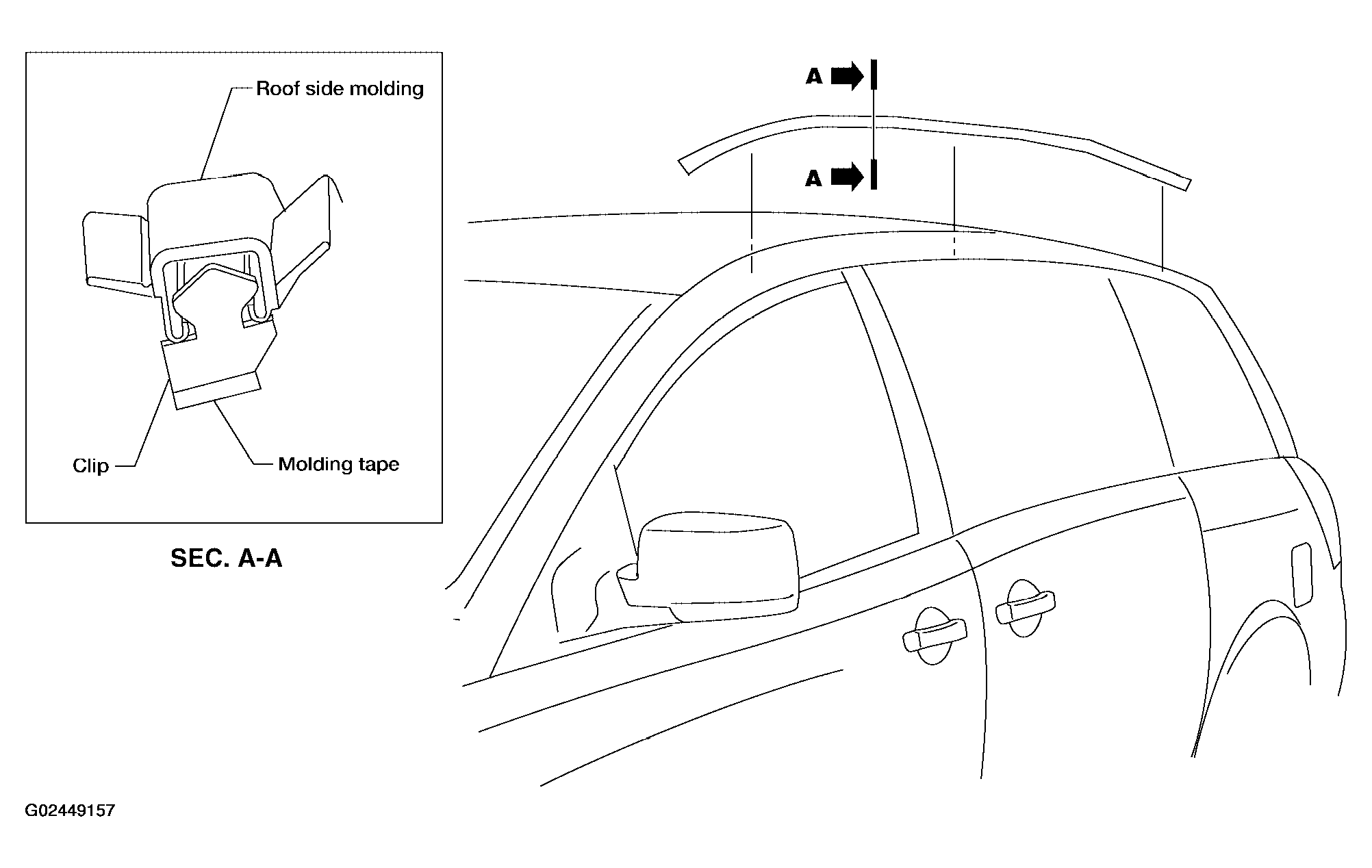

Fig 1: Removing/Installing Roof Side Molding
G02449157Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Lift roof side molding from front edge.
  2. Remove roof side molding.
    • Molding clips are attached to vehicle with tape.

Installation is in the reverse order of removal.
