Removal and Installation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

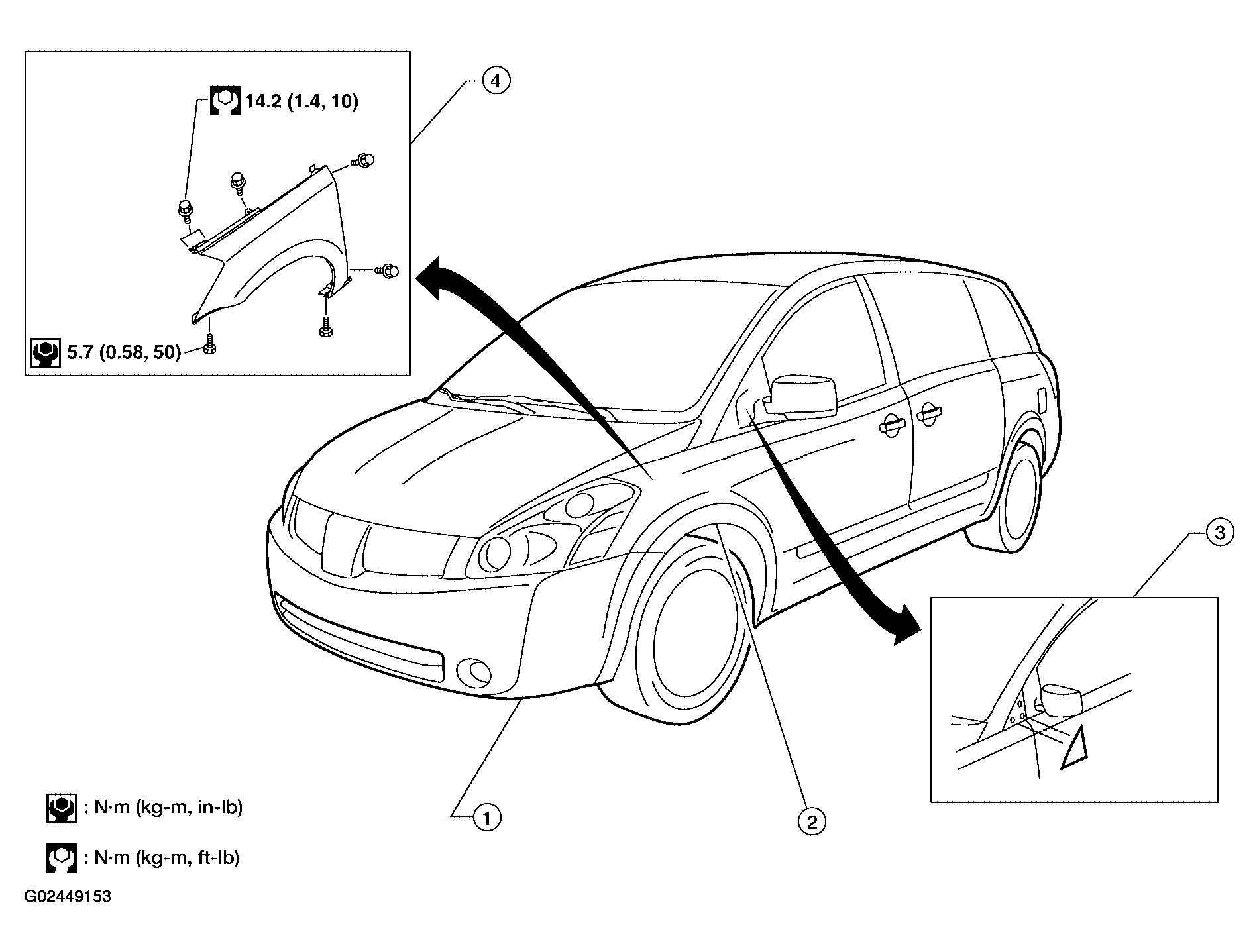

Fig 1: Removing/Installing Front Fender - With Torque Specifications
G02449153Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove front bumper fascia. Refer to "FRONT BUMPER ".
  2. Remove fender protector. Refer to "FENDER PROTECTOR ".
  3. Remove outside corner cover.
  4. Remove front fender.

    Installation is in the reverse order of removal.
