Removal and Installation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

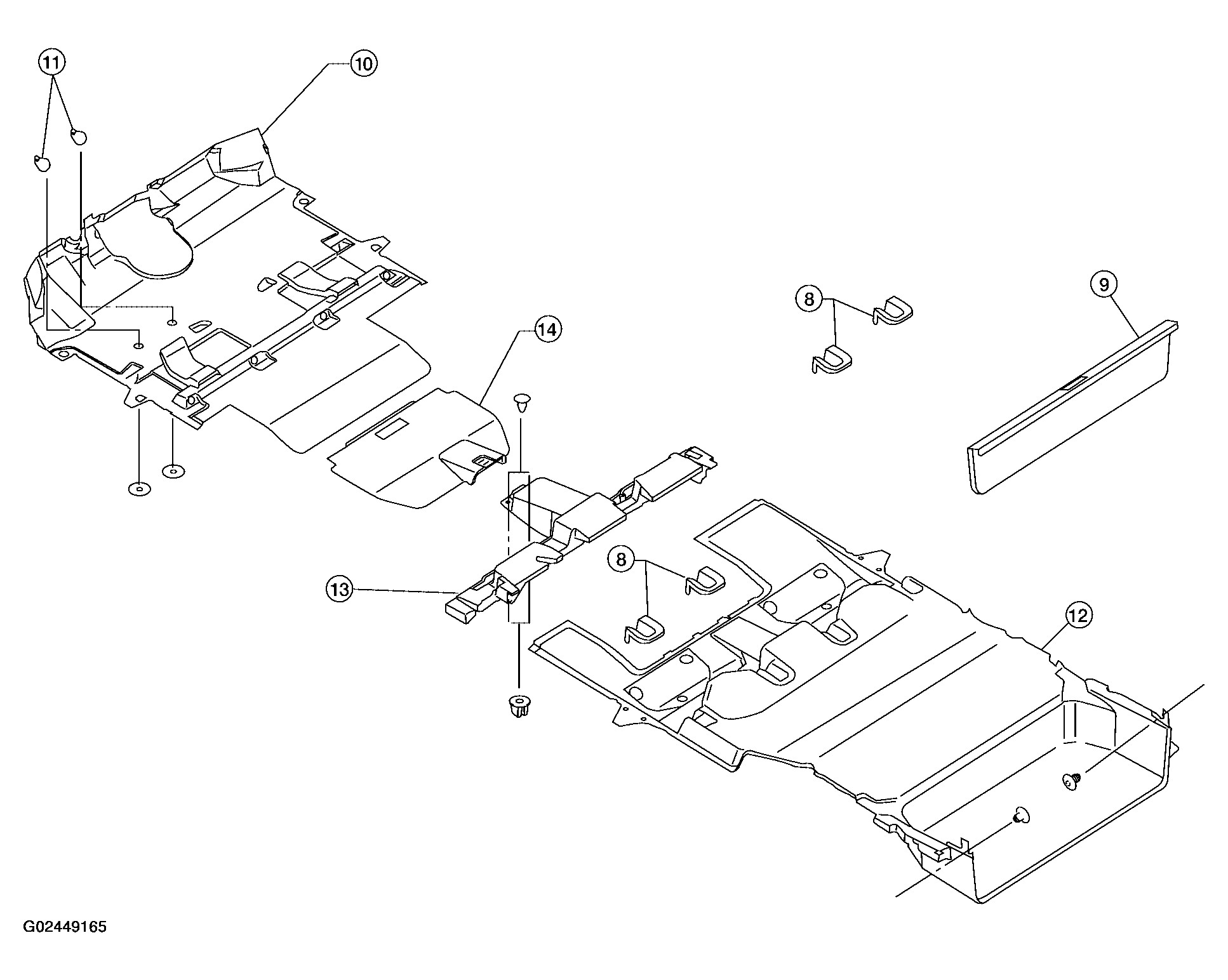

Fig 1: Exploded View Of Floor Trim & Components
G02449165Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove rear lower finisher assembly. Refer to "BODY SIDE TRIM ".
  2. Remove front seats. Refer to "FRONT SEAT ".
  3. Remove rear seats. Refer to "REAR SEAT - SECOND ROW ".
  4. Remove 3rd row rear seat assembly. Refer to "REAR SEAT - THIRD ROW ".
  5. Remove kicking plates. Refer to "BODY SIDE TRIM ".
  6. Remove center console. Refer to "INSTRUMENT PANEL ASSEMBLY ".
  7. Remove lower seat belt anchors. Refer to "SEAT BELTS ".
  8. Remove rear seat striker covers.
  9. Remove tailgate kicking plate assembly.
  10. Remove front carpet.
  11. Remove floor mat hooks from front carpet.
  12. Remove rear carpet assembly.
  13. Remove front floor spacer.
  14. Remove spare tire cover.

Installation is in the reverse order of removal.
