Clip And Fastener: Description

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Clips and fasteners in this article correspond to the following numbers and symbols.
Replace any clips and/or fasteners which are damaged during removal or installation.

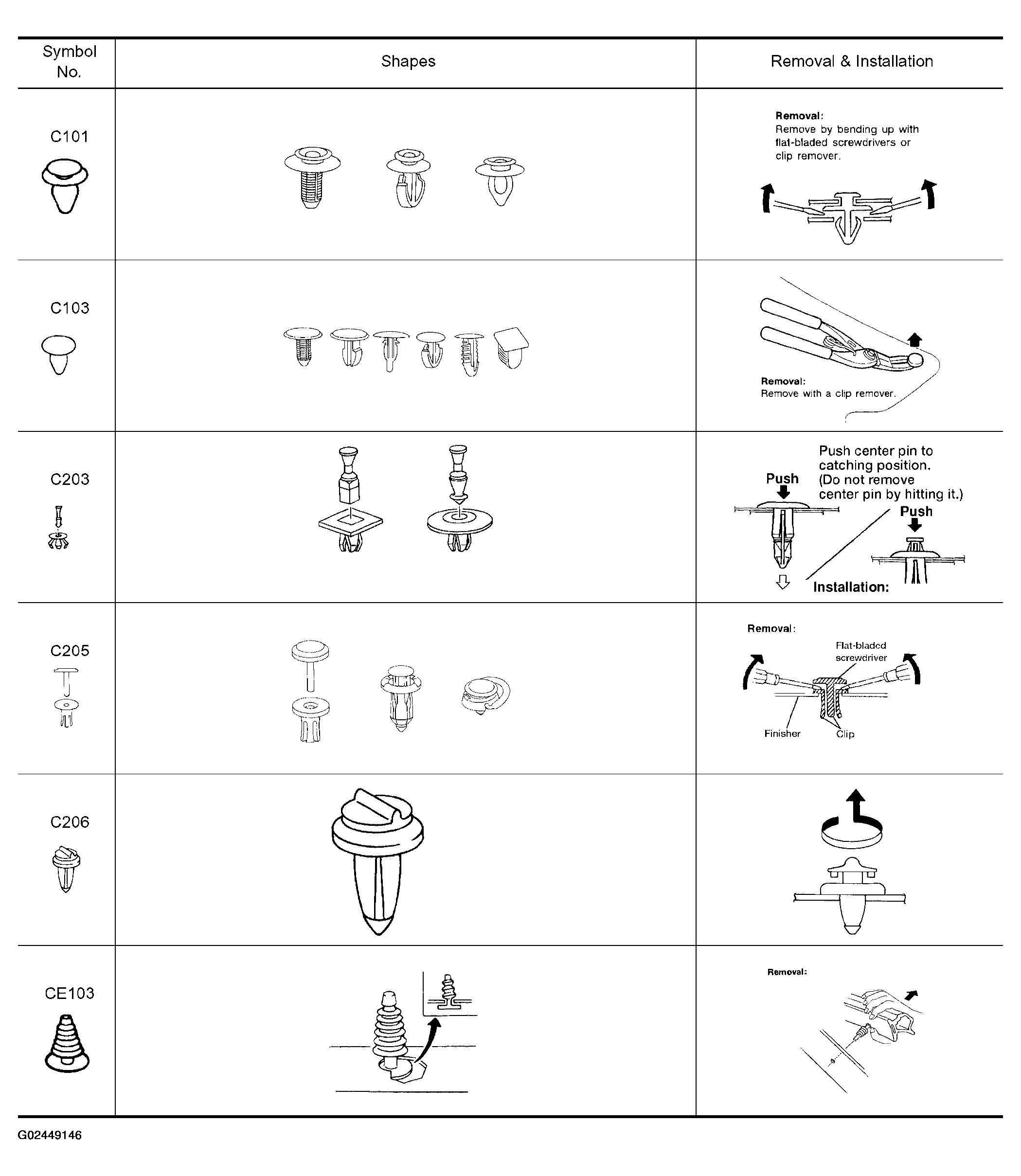

Fig 1: Clip & Fastener Component Description (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

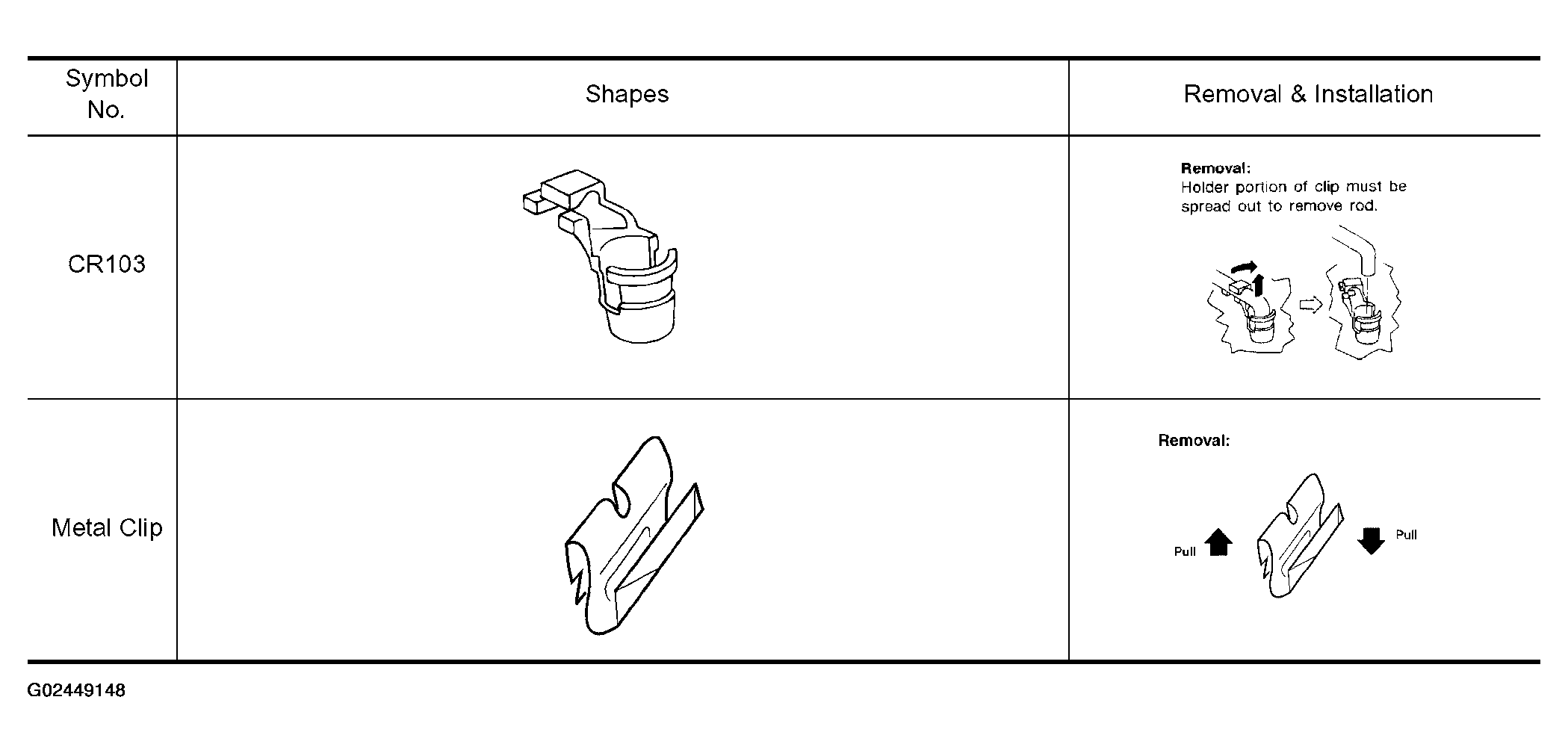

Fig 2: Clip & Fastener Component Description (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

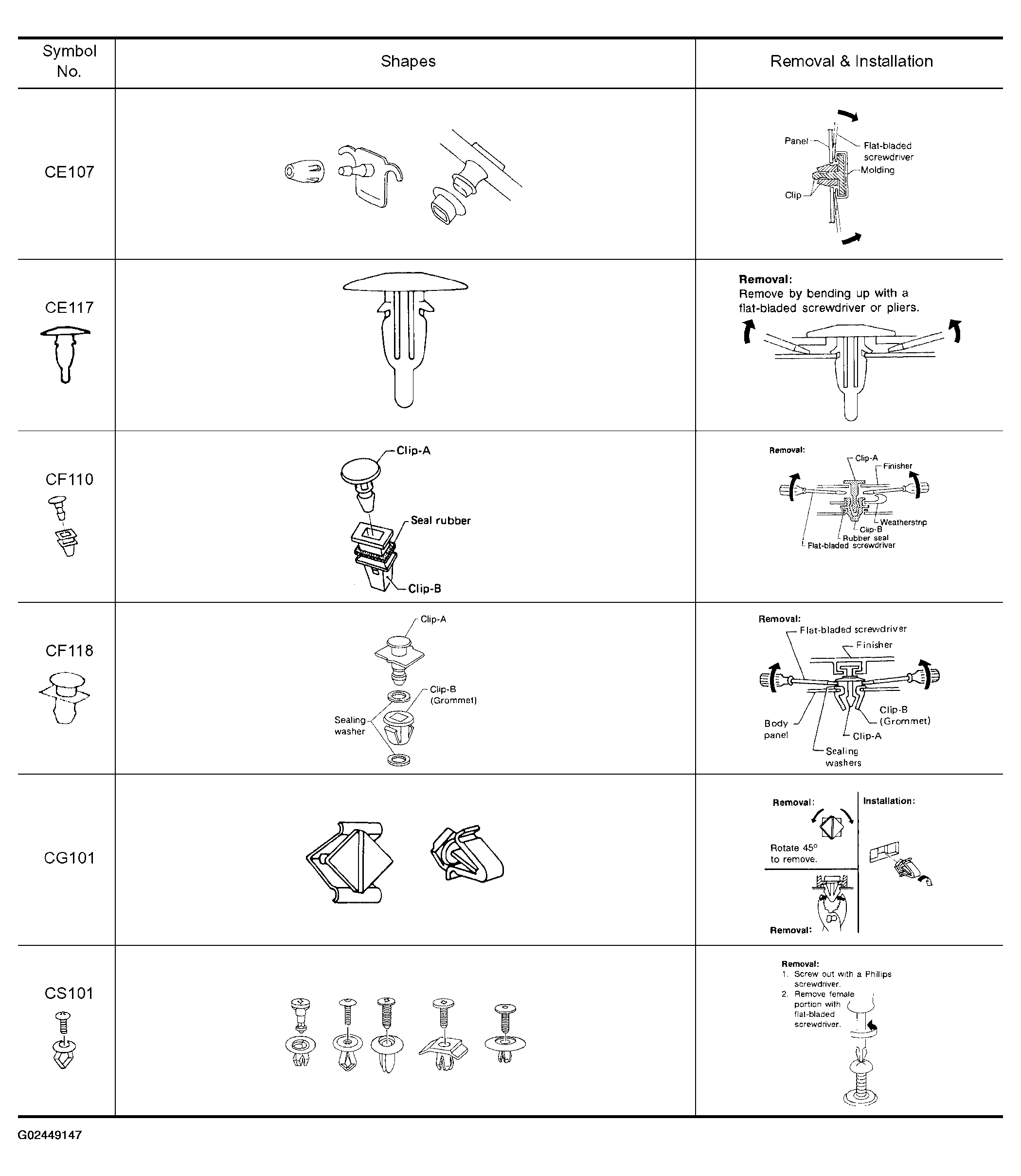

Fig 3: Clip & Fastener Component Description (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
