Right Side And Rear

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.
  • When removing or installing body side welts, do not allow butyl seal to come in contact with pillar garnish.

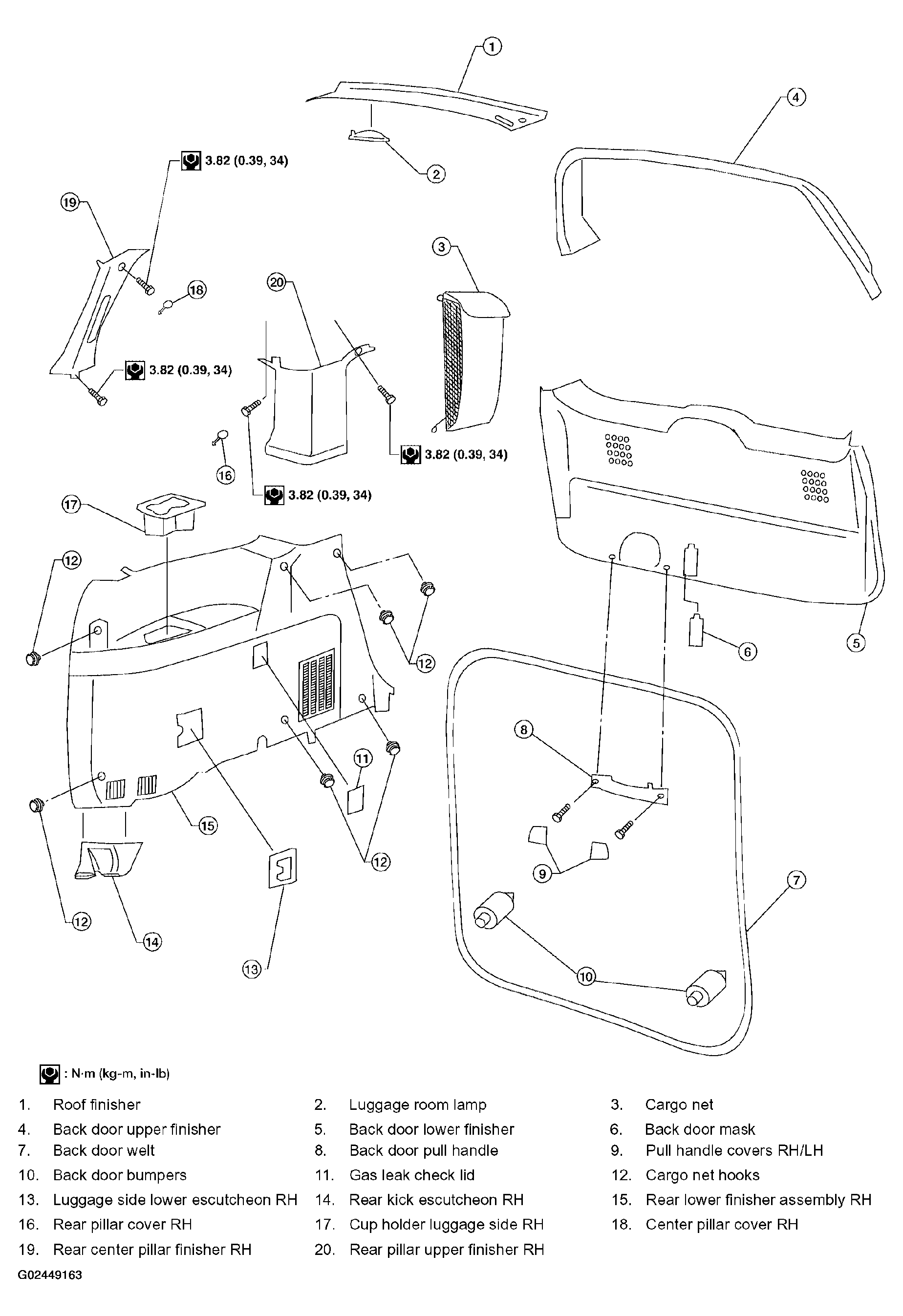

Fig 1: Exploded View Of Right Side & Rear Components - With Torque Specifications
G02449163Courtesy of NISSAN MOTOR CO., U.S.A.
