Left Side

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from finishers.
  • When removing or installing body side welts, do not allow butyl seal to come in contact with pillar finisher.

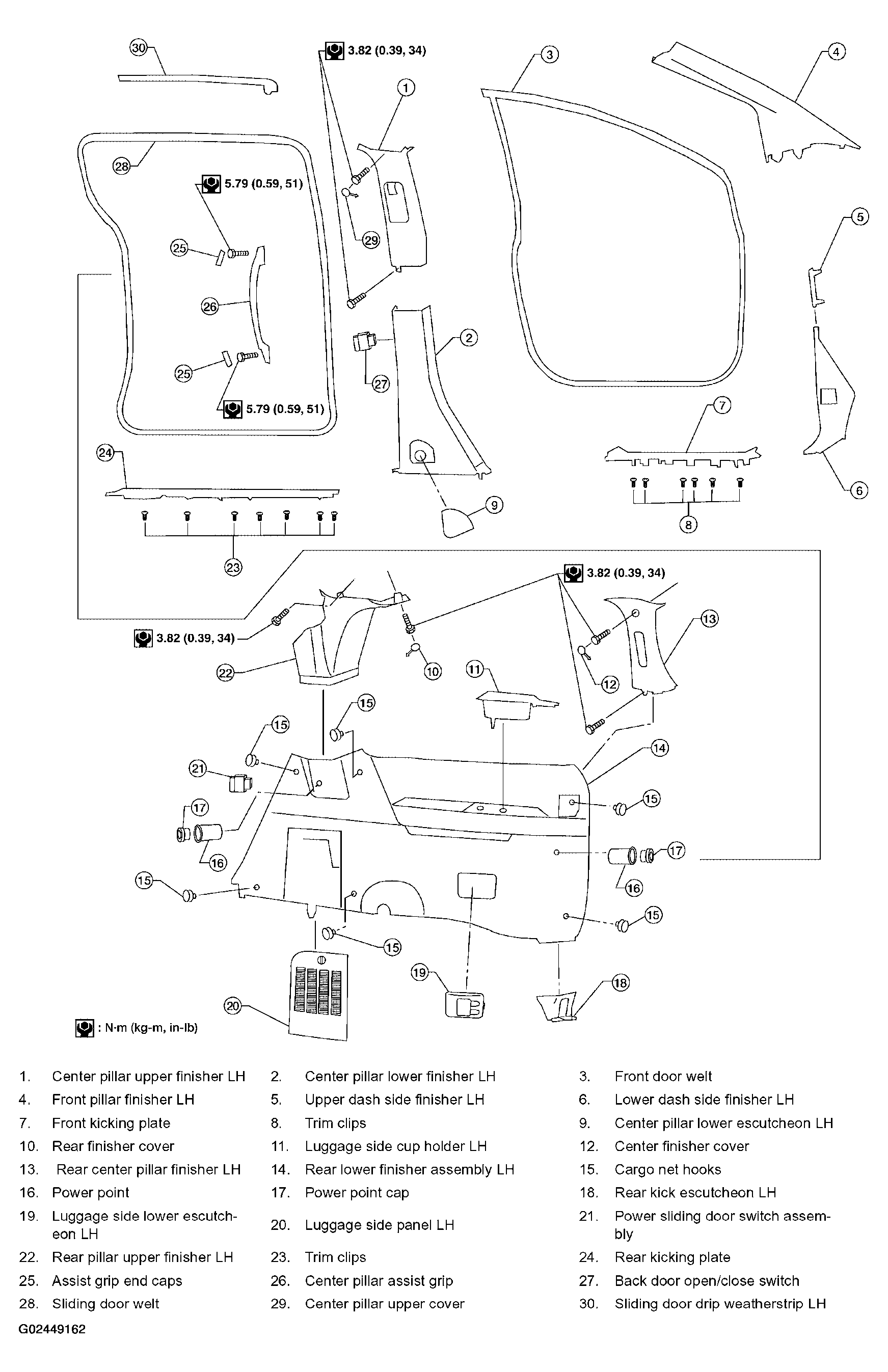

Fig 1: Exploded View Of Body Side Trim Components - With Torque Specifications
G02449162Courtesy of NISSAN MOTOR CO., U.S.A.
