Support Bearing

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

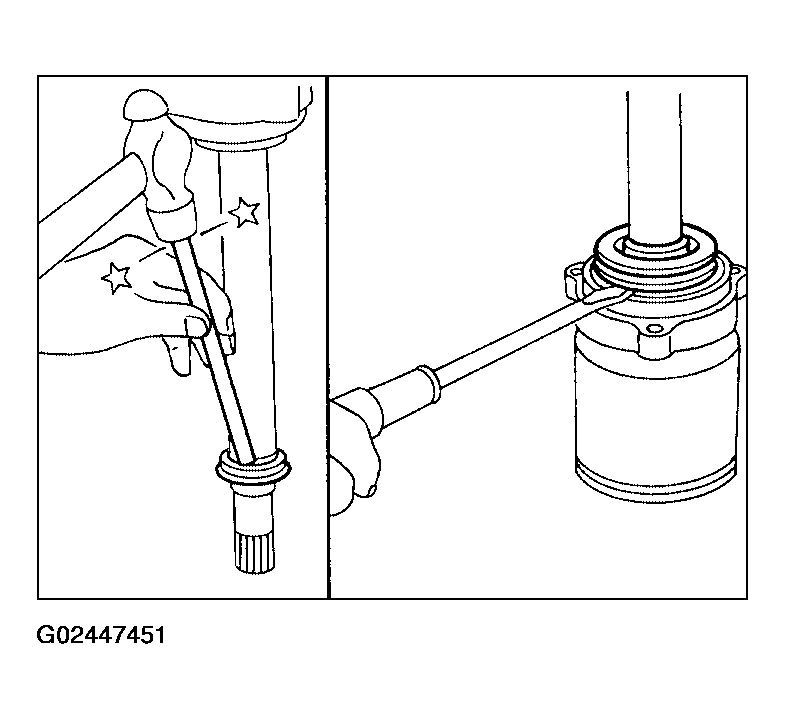

Remove dust shield from slide joint assembly.

Fig 1: Removing Dust Shield From Slide Joint Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

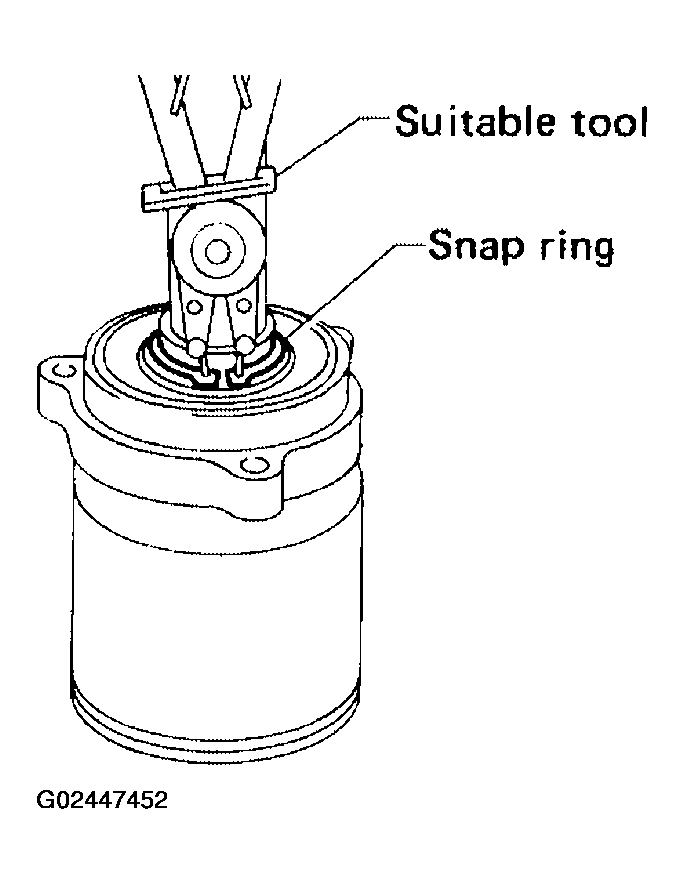

Remove snap ring using suitable tool.

Fig 2: Removing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
Press support bearing assembly off slide joint assembly using suitable tool.

Fig 3: Pressing Support Bearing Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

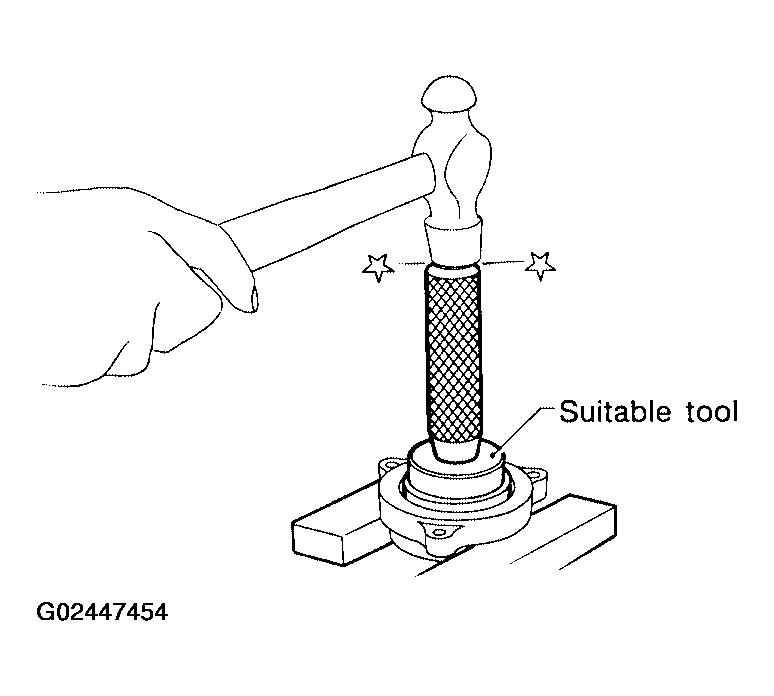

Separate support bearing from bracket using suitable tool.

Fig 4: Separating Support Bearing From Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
