Damper (5 A/T Models)

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use new damper bands for installation.
  2. Install damper from stationary-joint side while holding it securely.
    • "A": 205 - 215 mm (8.07 - 8.46 in)
    • "B": 70 mm (2.76 in)

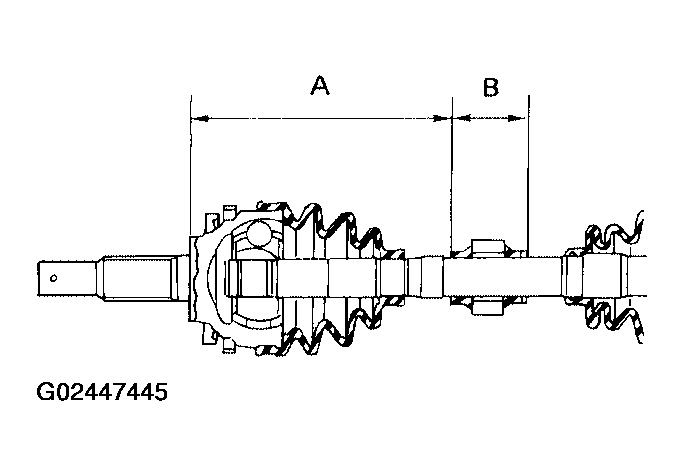

    Fig 1: Installing Damper From Stationary-Joint Side
    G02447445Courtesy of NISSAN MOTOR CO., U.S.A.
