Liquid Gasket Application Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Using a scraper, remove the old sealant adhering to the mating surface.
- Remove the sealant completely from the groove, mounting bolts, and bolt holes.

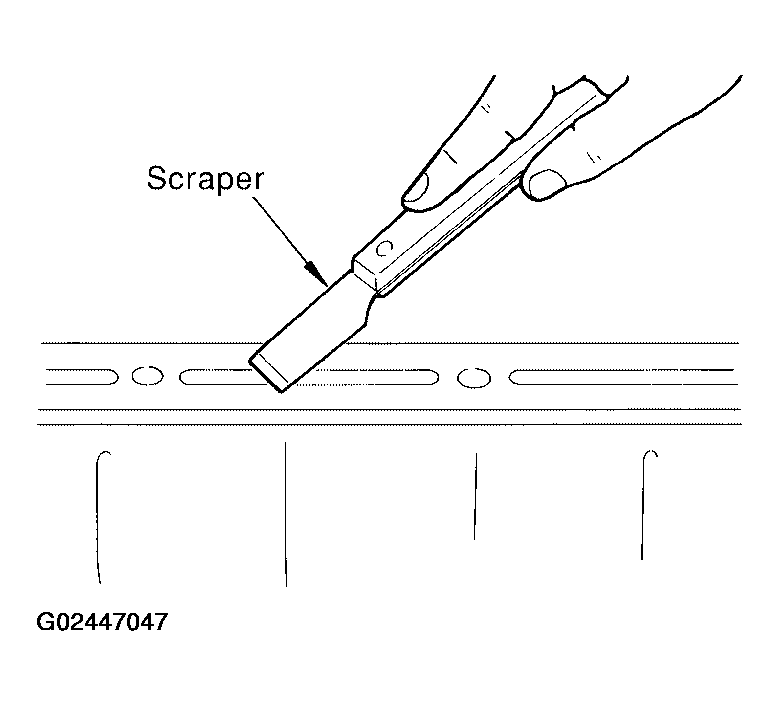

Fig 1: Removing Old Sealant Adhering To Mating Surface Using Scraper
Courtesy of NISSAN MOTOR CO., U.S.A.
Thoroughly clean the mating surface removing any adhering moisture, grease and foreign material.
Attach the sealant tube to the Tool.
- Tool number: WS39930000 ( - )
- Use Genuine RTV Silicone Sealant or equivalent. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
Apply the sealant without breaks to the specified location with the specified dimensions using Tool.
- If there is a groove for the sealant application, apply the sealant to the groove.

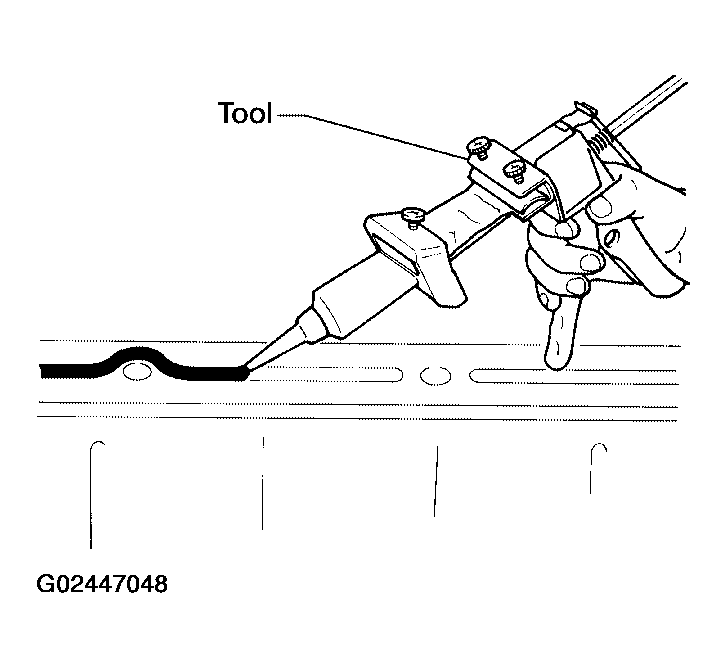

  Fig 2: Applying Sealant Without Breaks In The Groove
  Courtesy of NISSAN MOTOR CO., U.S.A.
- As for the bolt holes, normally apply the sealant inside the holes. Occasionally, it should be applied outside the holes. Make sure to read the text of service information.

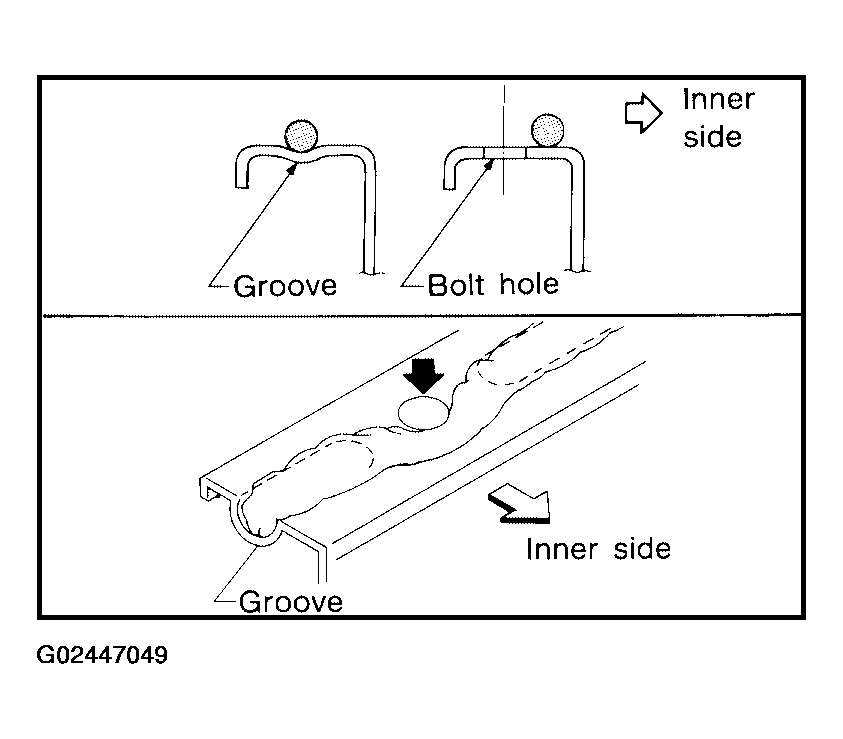

  Fig 3: Applying Sealant Around Inside Of Bolt Holes
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Within five minutes of sealant application, install the mating component.
- If the sealant protrudes, wipe it off immediately.
- Do not retighten after the installation.
- After 30 minutes or more have passed from the installation, fill the engine with the proper oil and coolant. Refer to RECOMMENDED FLUIDS AND LUBRICANTS .
