Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire. Refer to "ROTATION ".
  2. Remove lower ball joint pinch bolt using power tool, then separate transverse link from the steering knuckle assembly.

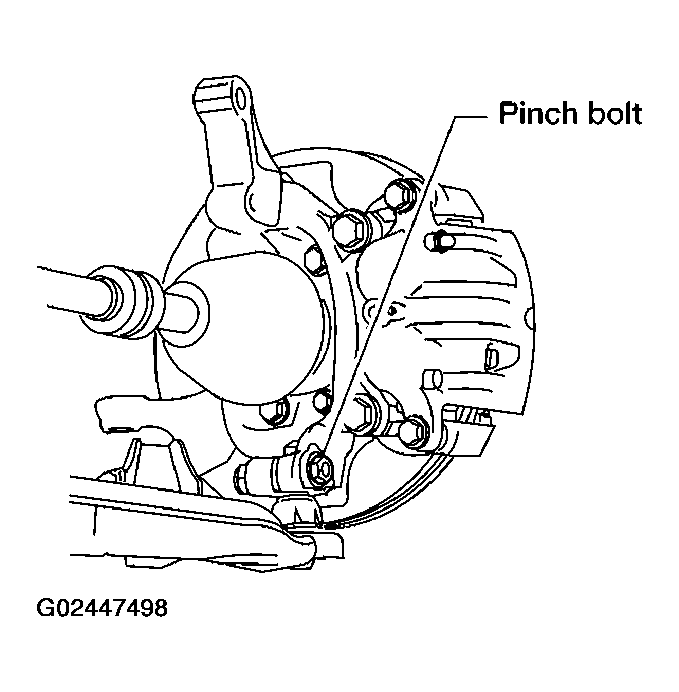

    Fig 1: Removing Lower Ball Joint Pinch Bolt
    G02447498Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the two transverse link pivot bolts using power tool.
  4. Remove the transverse link from the front suspension member.
