Vertical End Play

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check dust cover for damage. Replace it and the cover clamp if necessary.

NOTE: Before checking the axial forces and end play, turn the lower ball joint at least 10 revolutions so that the ball joint is properly broken in.

Vertical end play "C": 0 mm (0 in)

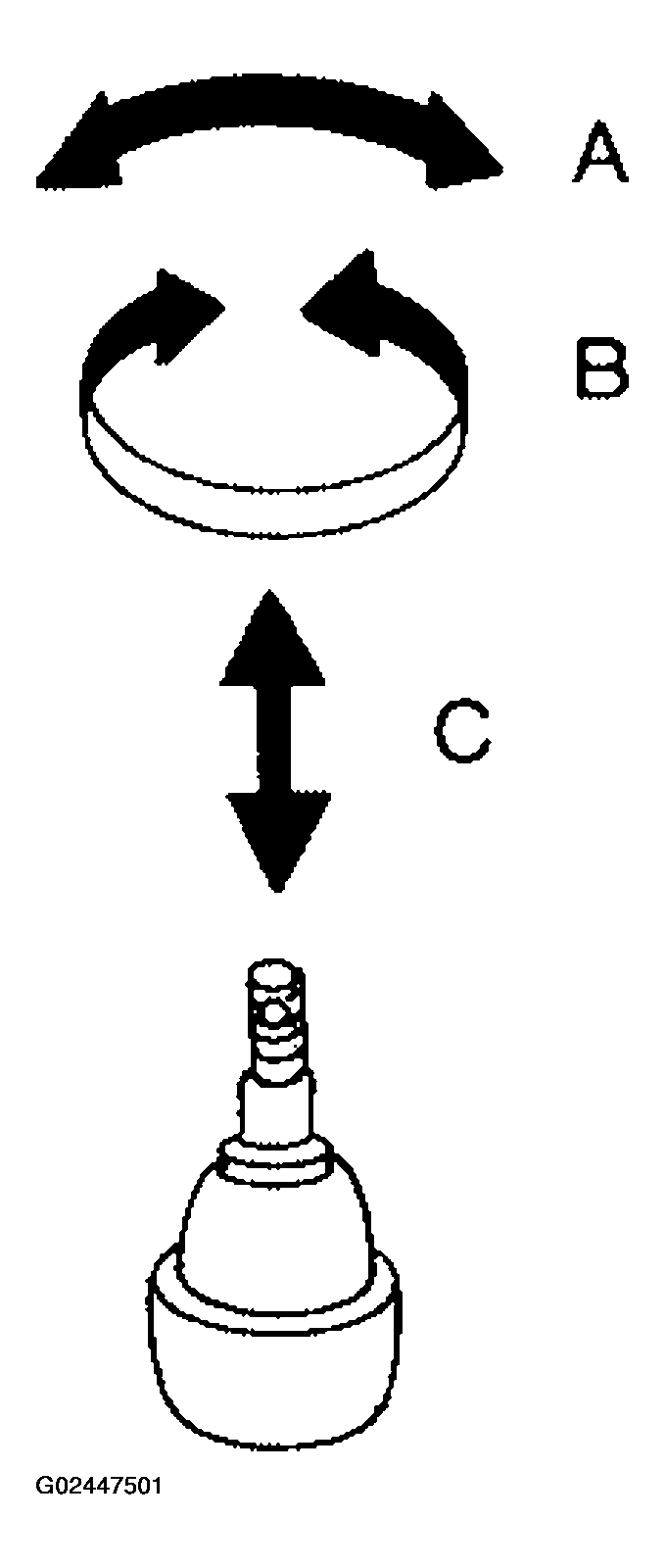

Fig 1: Inspecting Lower Ball Joint (Vertical End Play)

Courtesy of NISSAN MOTOR CO., U.S.A.
