Swinging Force

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Before checking the axial forces and end play, turn the lower ball joint at least 10 revolutions so that the ball joint is properly broken in.

Swinging force "A" (measuring from cotter pin hole of ball stud): 7.8 - 54.9 N (0.8 - 5.6 kg-f, 1.8 -12.3 lb-f)

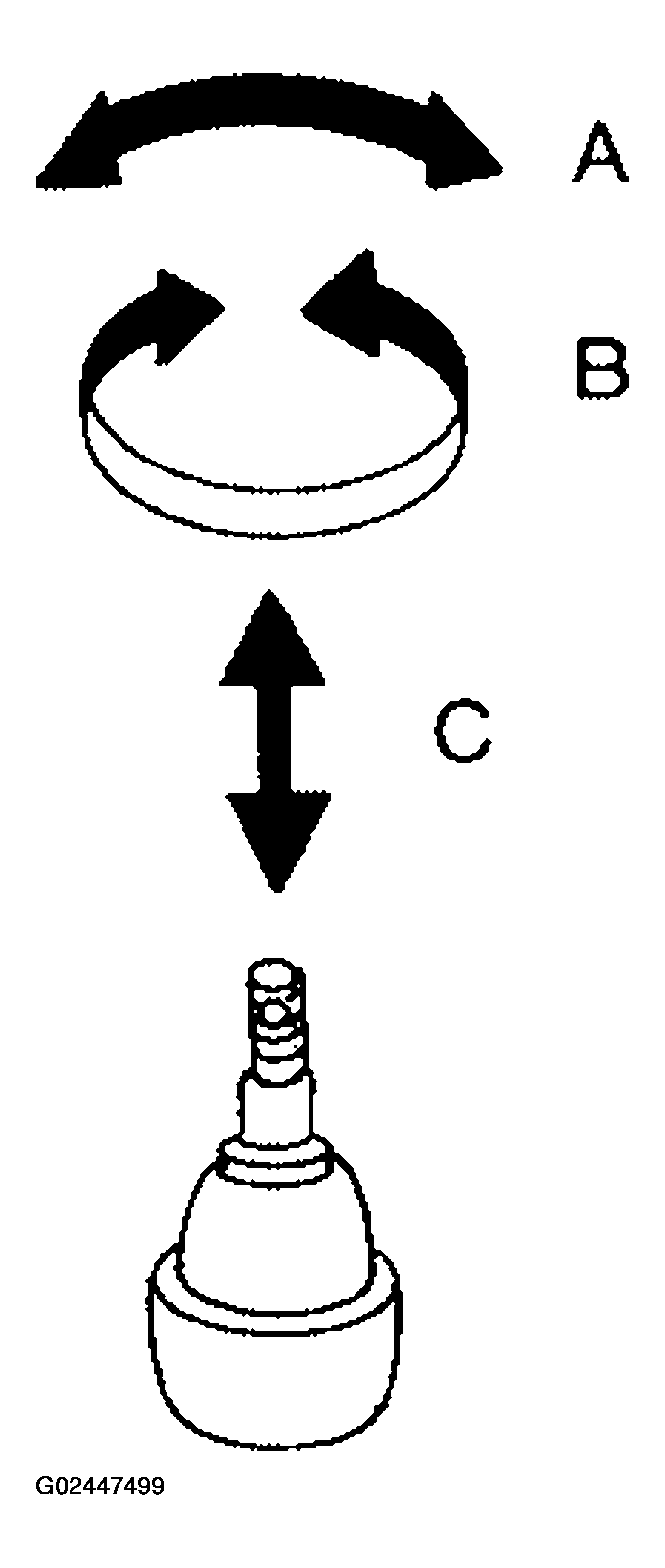

Fig 1: Inspecting Lower Ball Joint (Swinging Force)

Courtesy of NISSAN MOTOR CO., U.S.A.
