Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel and tire using power tool. Refer to "ROTATION ".
  2. Remove the mounting bolts on the lower side of the steering gear. Refer to "REMOVAL AND INSTALLATION - STEERING GEAR LOWER SIDE MOUNTING BOLTS ".
    • Support steering gear.
  3. Disconnect the connecting rod end at the stabilizer bar using power tool.
    • Prevent the stabilizer connecting rod from turning by inserting a hex wrench into the end of the ball stud, then remove nut.
  4. Remove the two stabilizer bar brackets from the front suspension member.
  5. Remove the front stabilizer bar by withdrawing from side.
    • Remove the two stabilizer bushings as necessary.

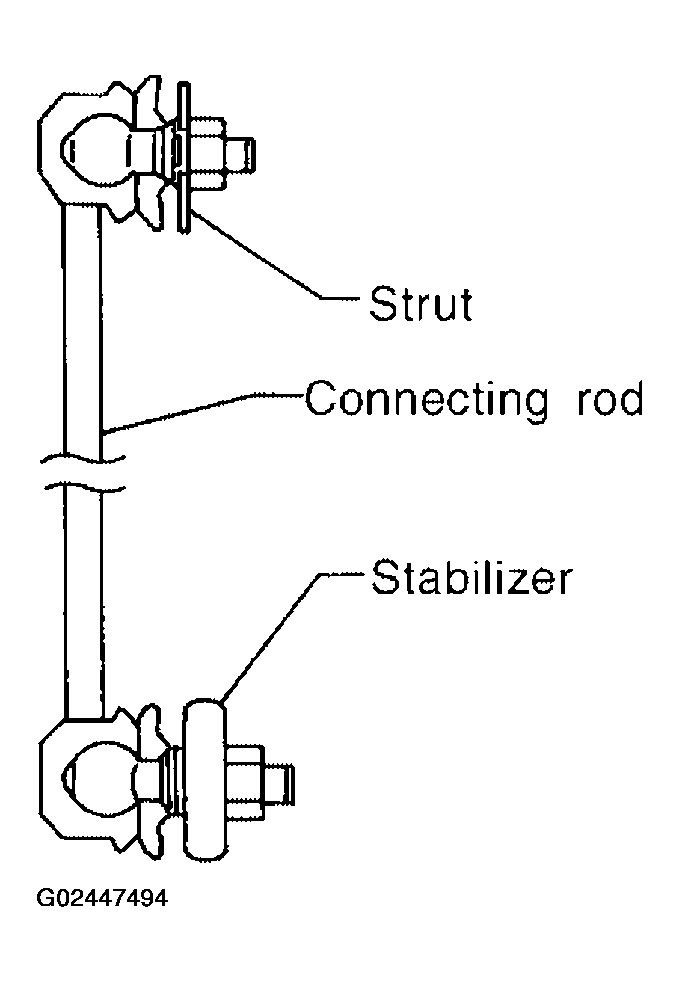

      Fig 1: Removing Connecting Rod End At Stabilizer Bar
      G02447494Courtesy of NISSAN MOTOR CO., U.S.A.
