Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

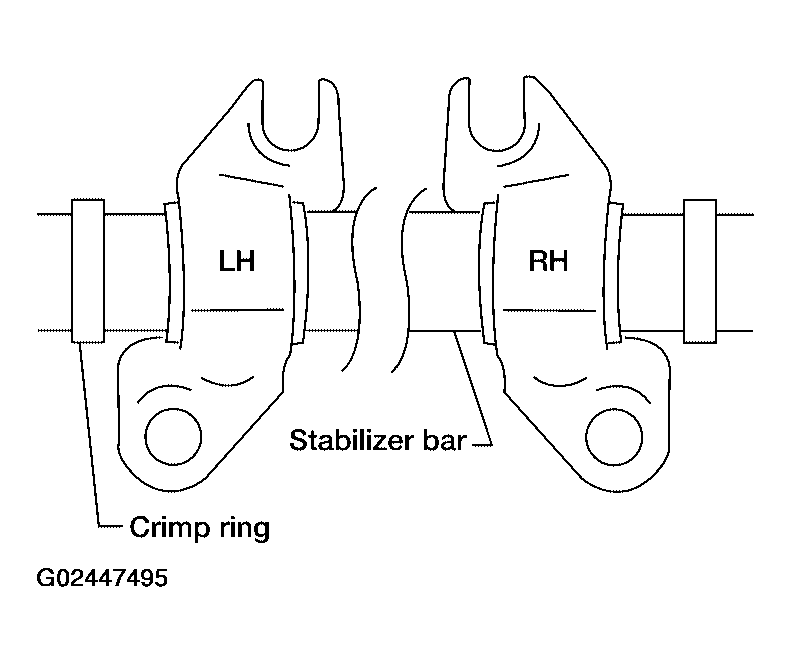

When installing stabilizer, make sure that the clamps are facing in the correct direction as shown.

Fig 1: Installing Stabilizer
Courtesy of NISSAN MOTOR CO., U.S.A.

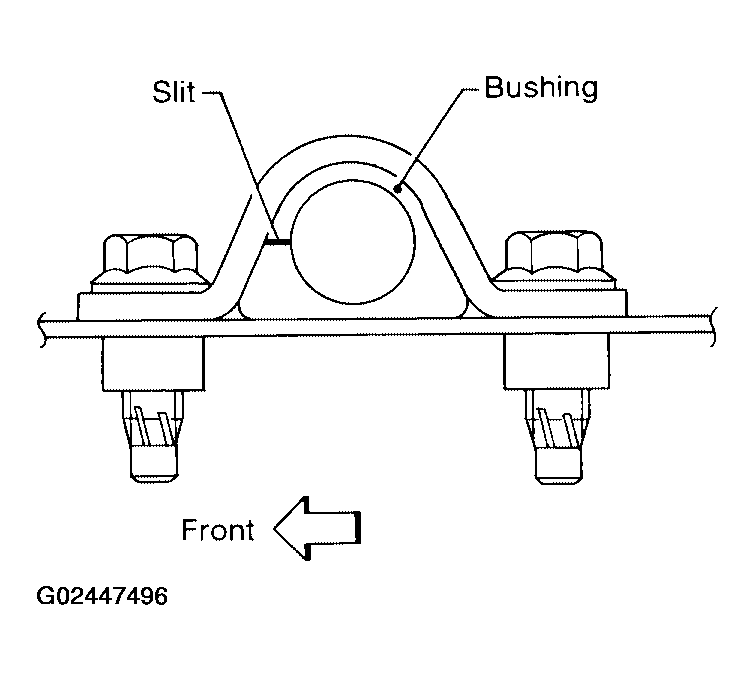

Make sure that slit in bushing is in the position as shown.
Lubricate the inner and outer surfaces of the bushing using a silicone lubricant.

Fig 2: Lubricating Inner & Outer Surfaces Of Bushing
Courtesy of NISSAN MOTOR CO., U.S.A.
