Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

After installation, check that the front wheel alignment is within specification. Refer to "FRONT WHEEL ALIGNMENT ".
When installing the strut spacer, it must be positioned as shown.
Tighten all nuts and bolts to specification using power tool. Refer to "COMPONENTS ".
WARNING: Always replace the shock absorber lower mounting nuts.

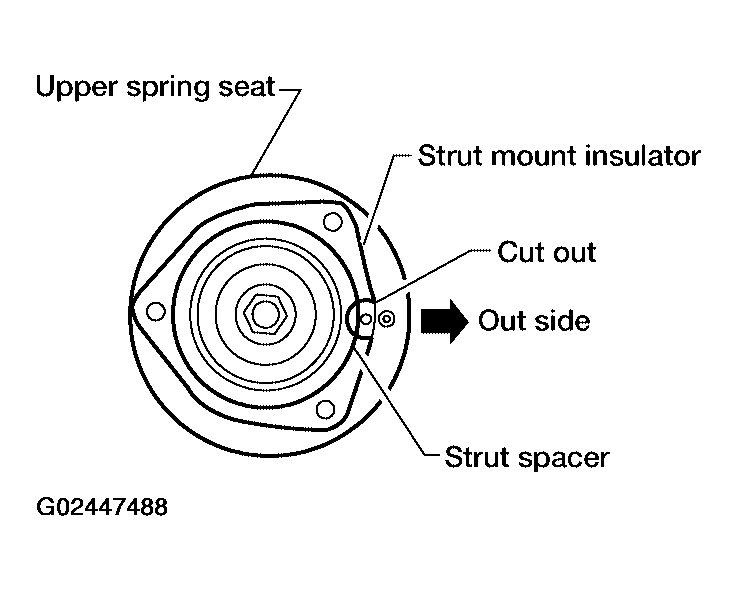

Fig 1: Installing Strut Spacer
Courtesy of NISSAN MOTOR CO., U.S.A.
