Inspection After Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check valve seating condition at ordinary room temperatures. It should seat tightly.

Check valve opening temperature and maximum valve lift.

THERMOSTAT STANDARD VALUES SPECIFICATION TABLE

Thermostat	Standard Values
Valve opening temperature	80 - 84°C (176 - 183°F)
Valve lift	8.6 mm/95°C (0.339 in./203°F)
Valve closing temperature	77°C (171°F) or lower

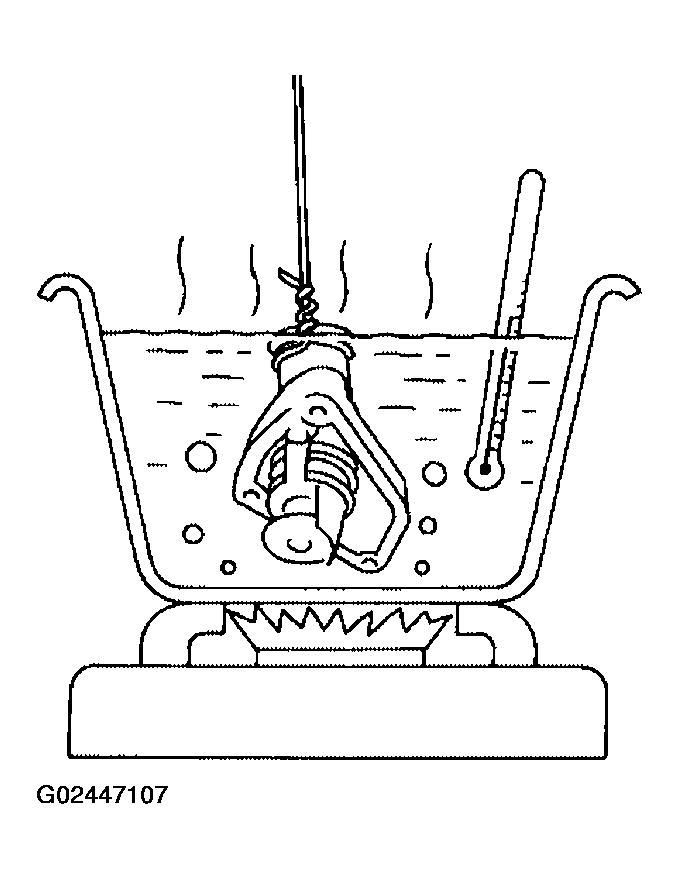

Fig 1: Checking Valve Seating Temperature

Courtesy of NISSAN MOTOR CO., U.S.A.
