Inspection After Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

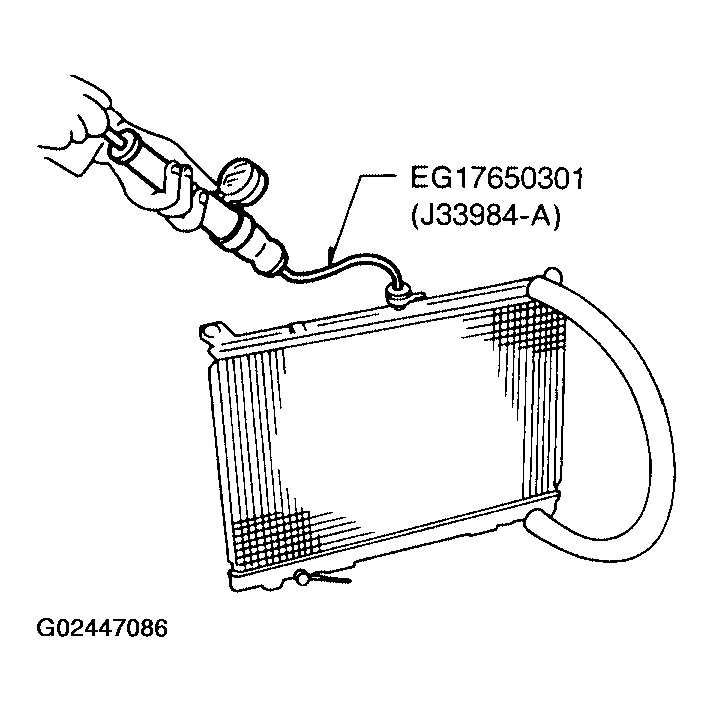

Apply pressure using Tool.

Fig 1: Applying Pressure Using Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
- Tool number: EG17650301 (J-33984-A)
WARNING: To prevent the risk of the hose coming undone while under pressure, securely fasten it down with a hose clamp.

CAUTION: Attach a hose to the A/T fluid cooler as well.

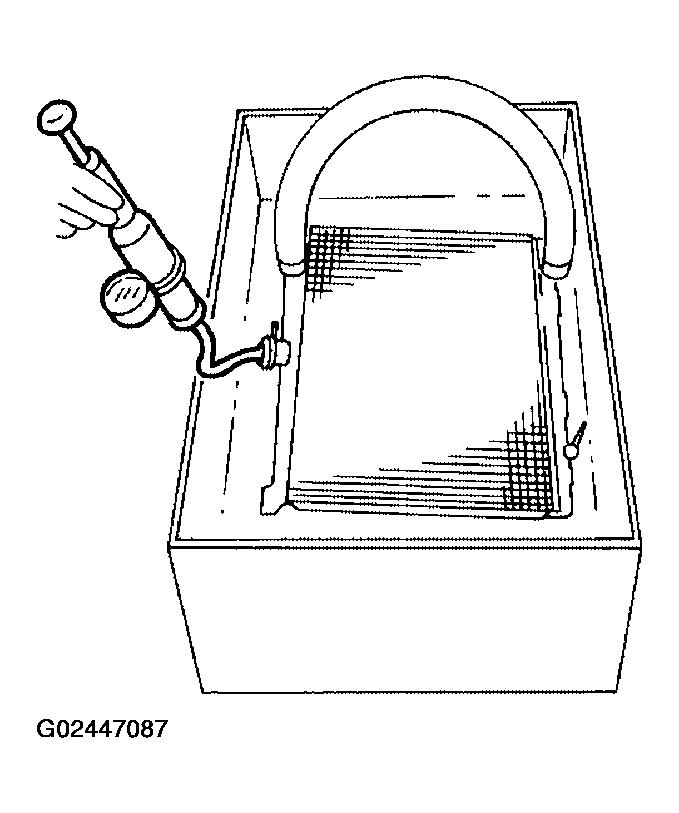

Place radiator in water filled tank and check for leakage.

Fig 2: Checking For Leakage
Courtesy of NISSAN MOTOR CO., U.S.A.
