Power Steering Oil Pump Belt

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove engine undercover.
Loosen adjusting bolt "C".
Loosen power steering oil pump bolt "D".
NOTE: Bolt head "D" is at the engine rear side.
Adjust the belt by turning the adjusting bolt "E".
- For specified belt deflection and tension, refer to "DRIVE BELTS ".
NOTE: Adjusting bolt "E" is loosened with counterclockwise rotation.

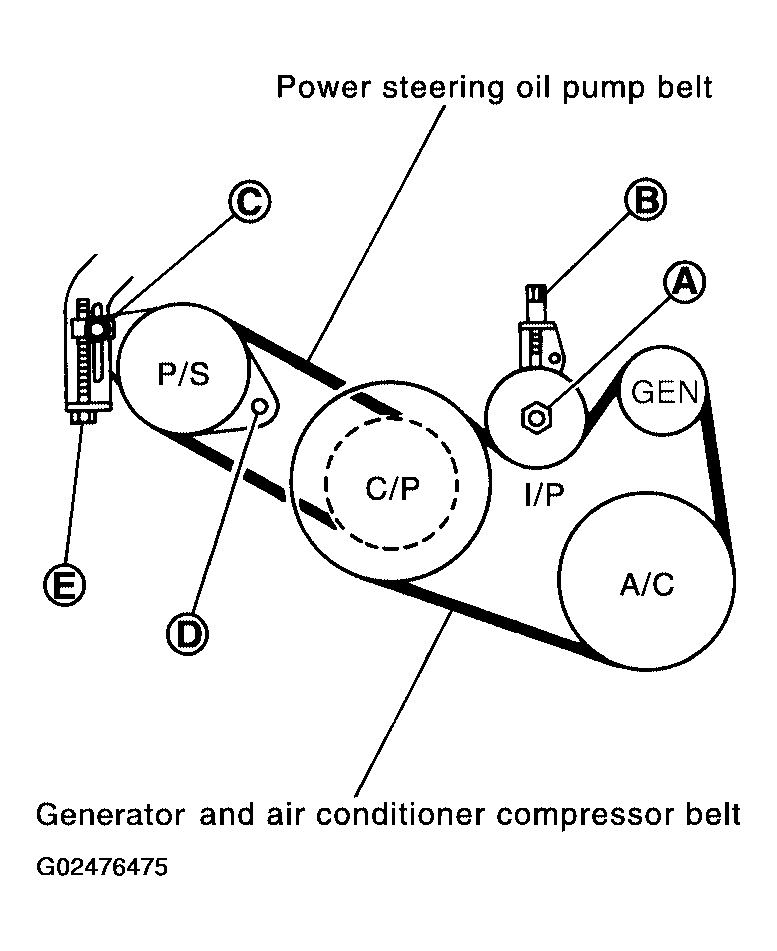

Fig 1: View Of Pulley & Drive Belt (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten adjusting bolt "C".
Adjusting bolt "E": 28.0 N.m (2.9 kg-m, 21 ft-lb)
Tighten power steering oil pump bolt "D".
Power steering pump bolt "D":43.2 N.m (4.4 kg-m, 32 ft-lb)
