Generator and Air Conditioner Compressor Belt

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove engine undercover.
Loosen idler pulley lock nut "A" and adjust the belt by turning adjusting bolt "B".
- For specified belt deflection and tension, refer to "DRIVE BELTS ".

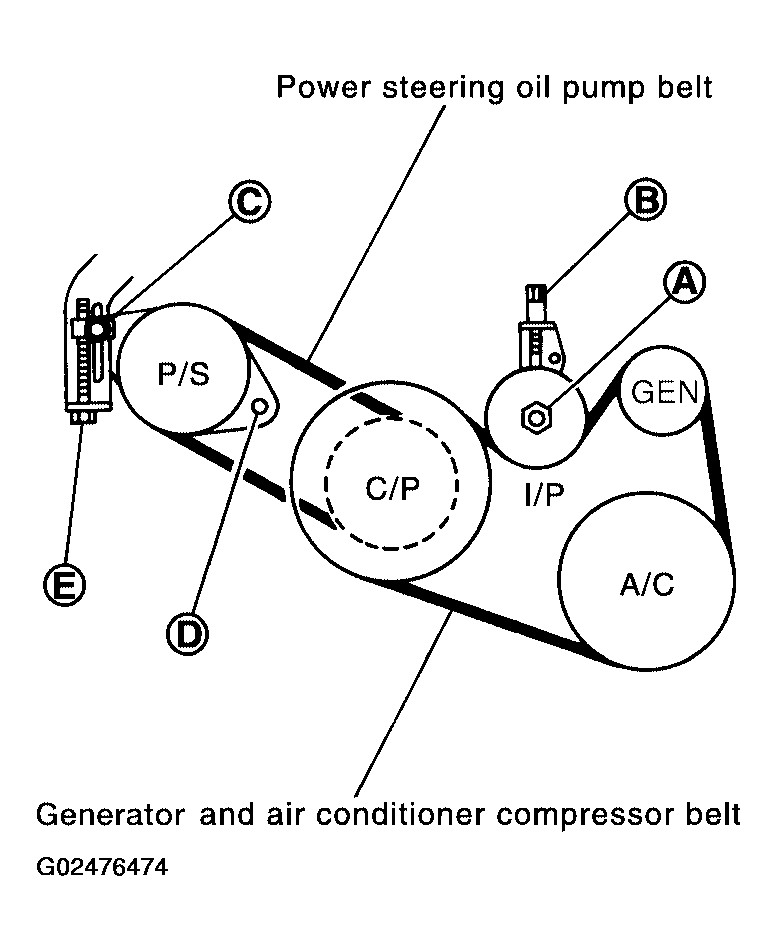

Fig 1: View Of Pulley & Drive Belt (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten lock nut "A".
Lock nut "A": 34.8 N.m (3.5 kg-m, 26 ft-lb)
Tighten adjusting bolt "B".
Adjusting bolt "B": 5.4 N.m (0.55 kg-m, 48 in-lb)
