Belt Deflection and Tension

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

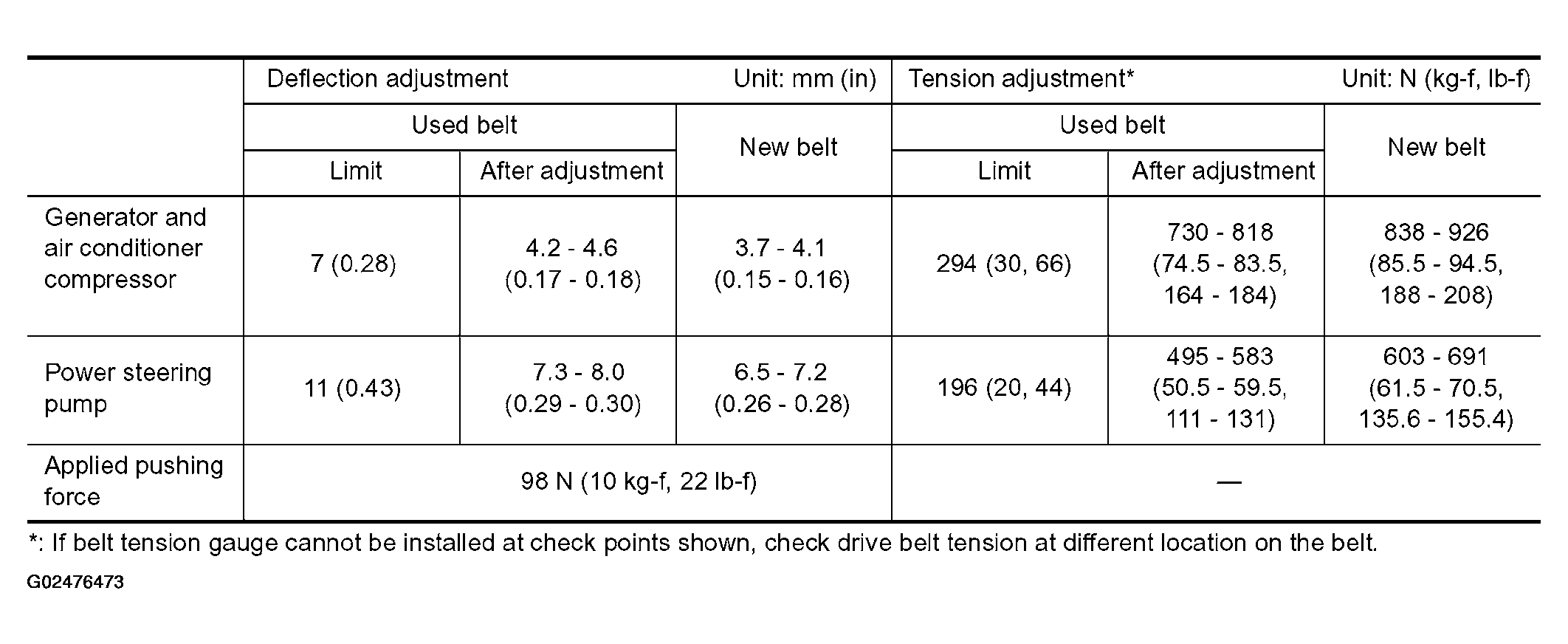

Fig 1: Belt Deflection & Tension Chart
G02476473Courtesy of NISSAN MOTOR CO., U.S.A.
