Checking Fluid Level

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check the power steering fluid level in the reservoir tank with the engine off.

Use the "HOT" range or the "COLD" range fluid temperatures.

"HOT" range PSF temperature: 50° - 80° C (122° - 176° F)

"COLD" range PSF temperature: 0° - 30° C (32° - 86° F)

CAUTION:
  • Do not overfill the power steering reservoir tank.
  • Do not reuse any used power steering fluid.

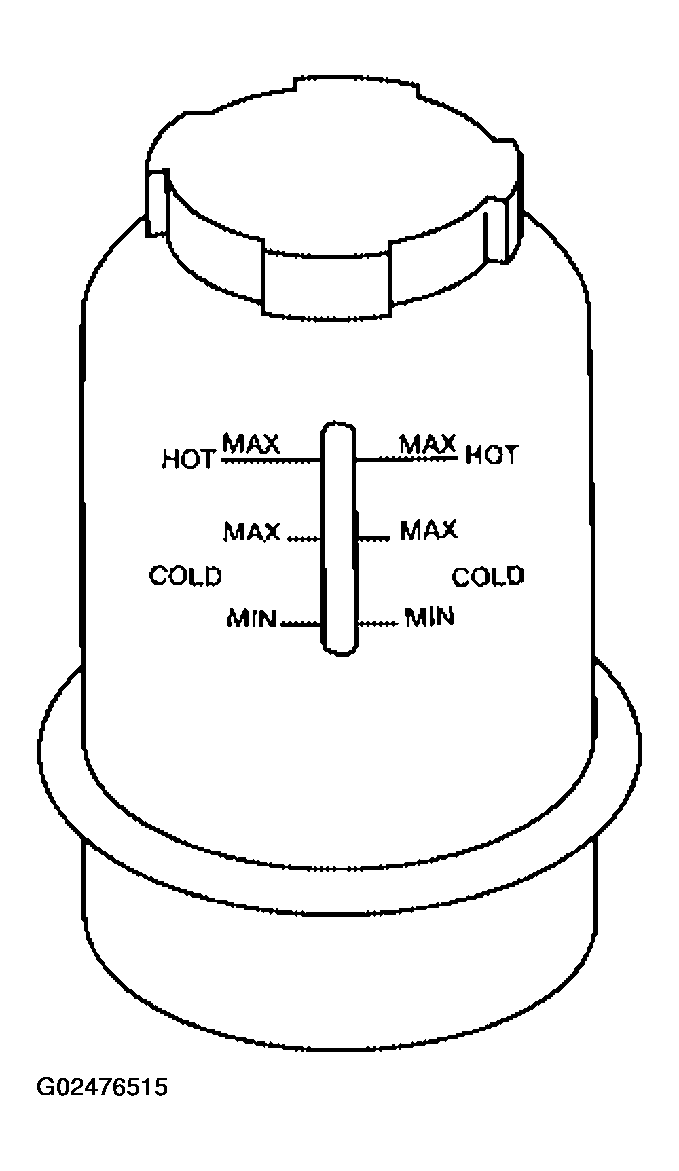

    Fig 1: Identifying Power Steering Fluid Level Markings
    G02476515Courtesy of NISSAN MOTOR CO., U.S.A.
  • Use the recommended power steering fluid, Genuine NISSAN PSF or equivalent. Refer to "RECOMMENDED FLUIDS AND LUBRICANTS ".
