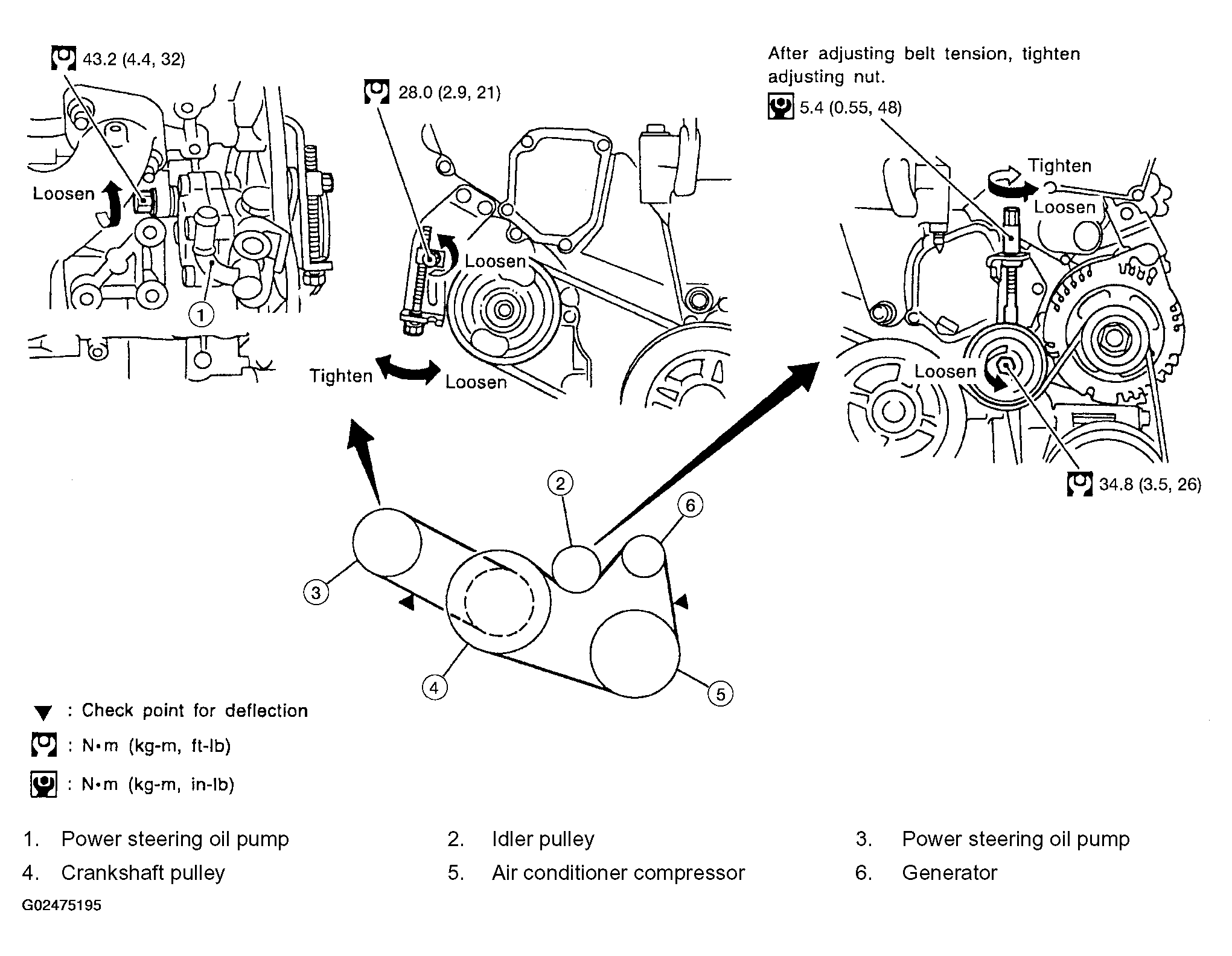

Drive Belt
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
Drive Belt Service Data & Specifications Chart (2 Of 2)
| Deflection adjustment | Unit mm (in) | Tension adjustment(1) | Unit: N (kg-f, lb-f) | |||||
|---|---|---|---|---|---|---|---|---|
| Used belt | New belt | Used belt | New belt | |||||
| Limit | After adjustment | Limit | After adjustment | |||||
| Generator and air conditioner compressor | 7 (0.28) | 4.2 -- 4.6 (0.170.-- 18) | 3.7 -- 4.1 (0.15 -- 0.16) | 294 (30, 66) | 730 -- 818 (74.5 -- 83.5, 164 -- 184) | 838 -- 926 (85.5 -- 94.5, 188 -- 208) | ||
| Power steering oil pump | 11 (0.43) | 7.3 -- 8.0 (0.29 -- 0.30) | 6.5 --- 7.2 (0.26 -- 0.28) | 196 (20, 44) | 495 -- 583 (50.5 -- 59.5, 111 -- 131) | 603 (61.5 -- 691 (61.5 -- 70.5, 135.6 -- 155.4) | ||
| Applied pushing force | 98 N (10 kg-f, 22 lb-f) | --- | ||||||
|
||||||||
