Removal and Installation of Front Oil Seal: Installation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Apply new engine oil to new oil seal and install it flush with front of mounting surface using a suitable tool
- Install new oil seal in the direction as shown.
  - Suitable drift
  - Outer diameter: 59 mm (2.32 in)
  - Inner diameter: 49 mm (1.93 in)
  CAUTION: Press fit straight and avoid causing burrs or tilting the oil seal.

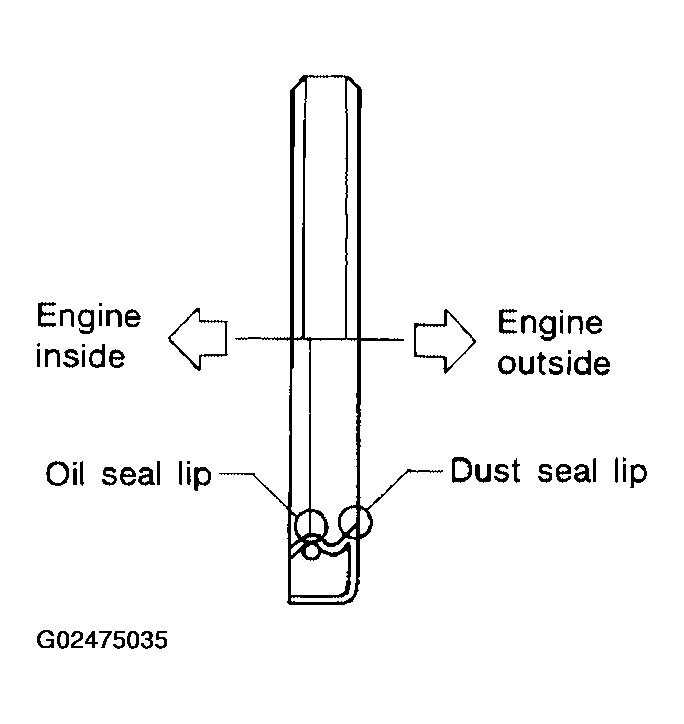

  Fig 1: Identifying Oil Seal
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install crankshaft pulley and tighten the bolt in two steps.
- Lubricate thread and seat surface of the bolt with new engine oil.
- Apply a paint mark for the second step of angle tightening.
  - Crankshaft pulley bolt
  - Step 1: 44 N.m (4.5 kg-m, 32 ft-lb)
  - Step 2: 60° - 65° degrees clockwise

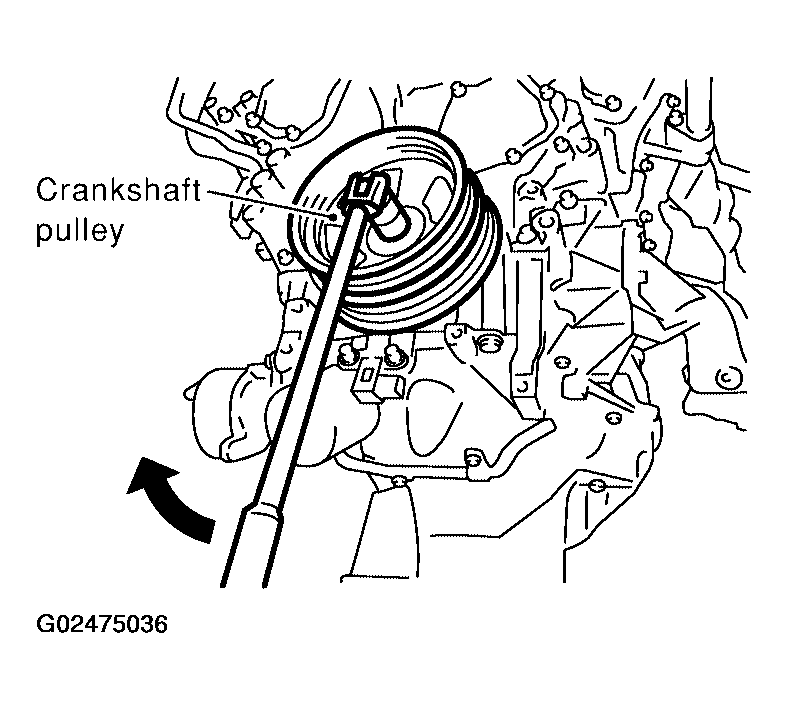

  Fig 2: Installing Crankshaft Pulley Bolt
  Courtesy of NISSAN MOTOR CO., U.S.A.

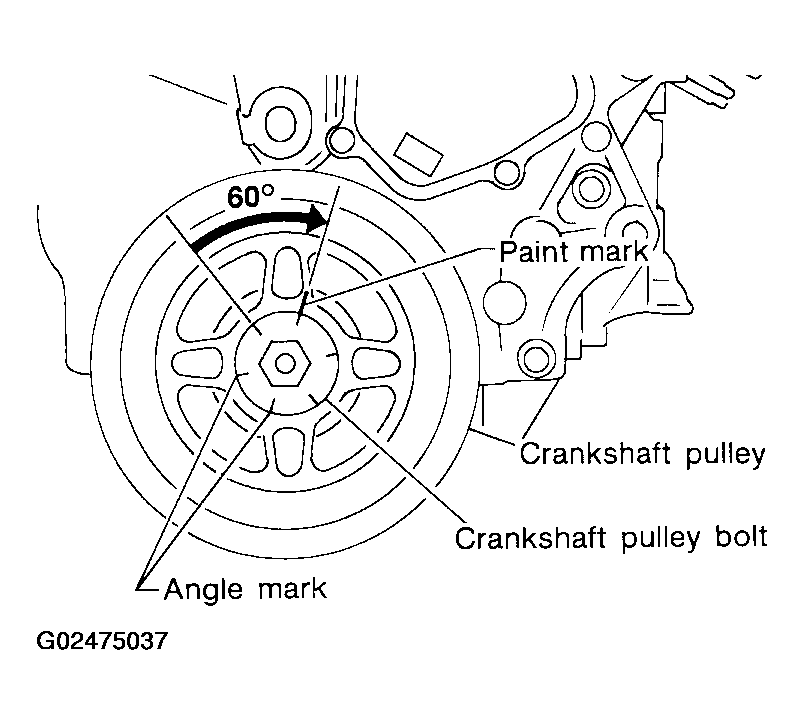

  Fig 3: Identifying Angle
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove Tool attached to the transmission/starter bolt hole.
- Tool number: KV10117700 (J-44716)

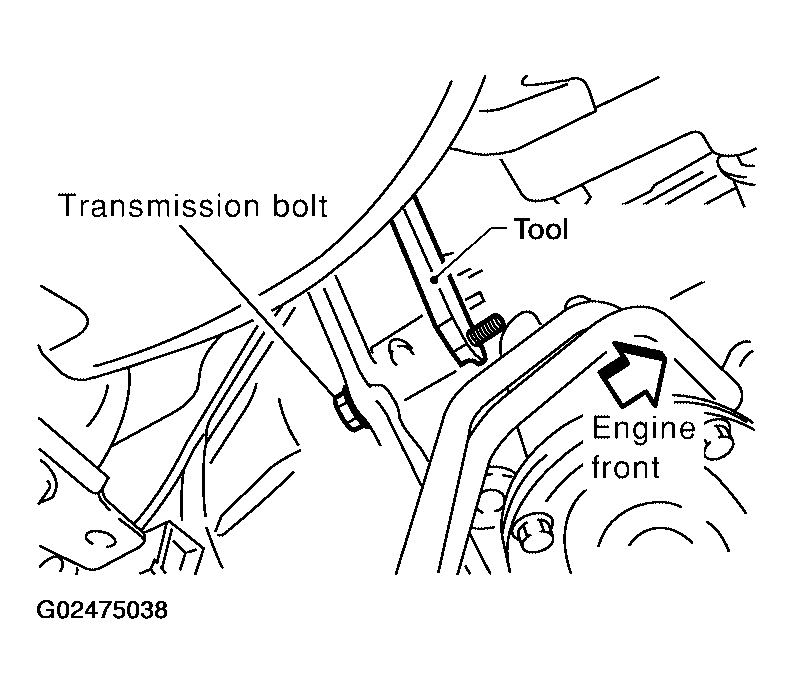

Fig 4: Removing Tool Attached To Transmission/Starter Bolt Hole
Courtesy of NISSAN MOTOR CO., U.S.A.
Installation of the remaining components is in reverse order of removal.
