Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cover using power tool.
  2. Drain engine coolant. Refer to DRAINING ENGINE COOLANT .
  3. Disconnect the mass air flow sensor electrical connector and remove the upper air cleaner case, mass air flow sensor and air cleaner to electric throttle control actuator tube. Refer to REMOVAL AND INSTALLATION ".
  4. Remove the intake manifold collector (upper), gasket, and electric throttle control actuator. Refer to REMOVAL AND INSTALLATION .
  5. Remove the six ignition coils.
    CAUTION: Do not shock it.

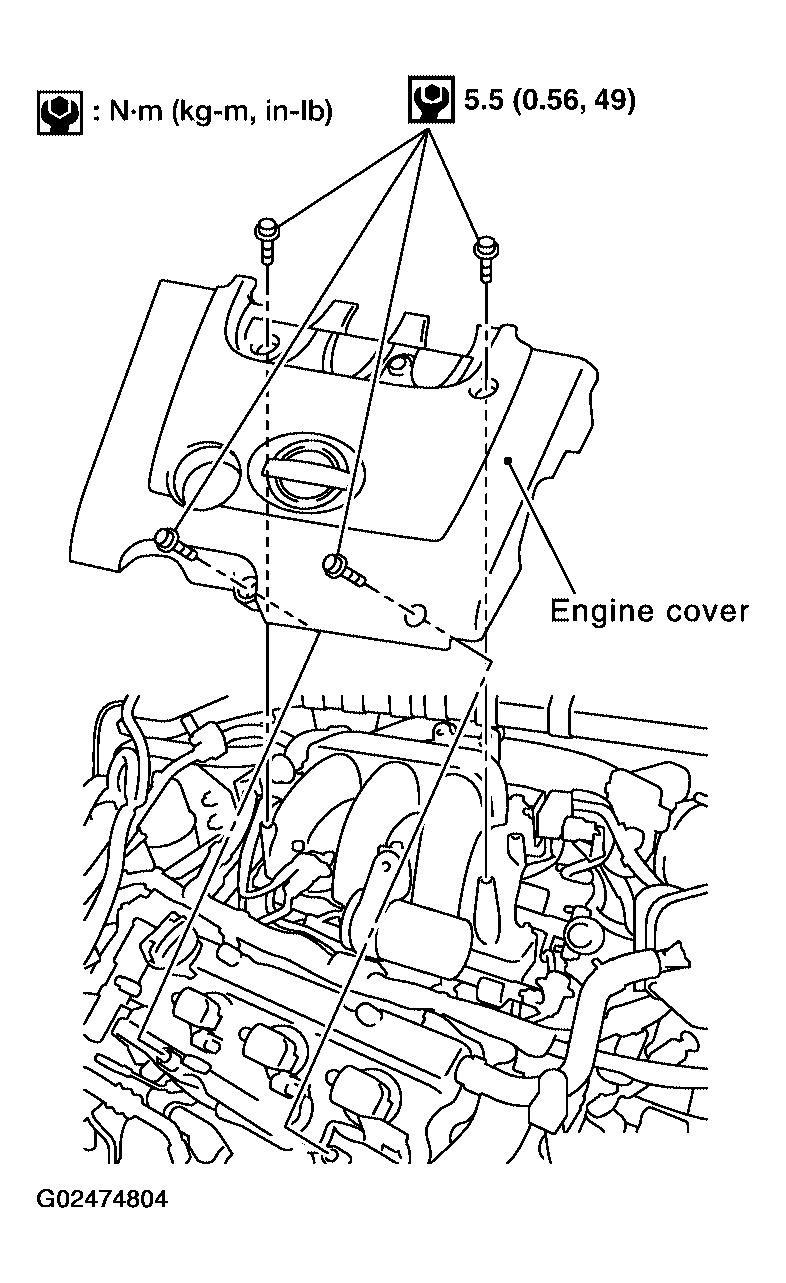

    Fig 1: Removing Engine Cover - With Torque Specifications
    G02474804Courtesy of NISSAN MOTOR CO., U.S.A.
