Removal and Installation: Notes

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

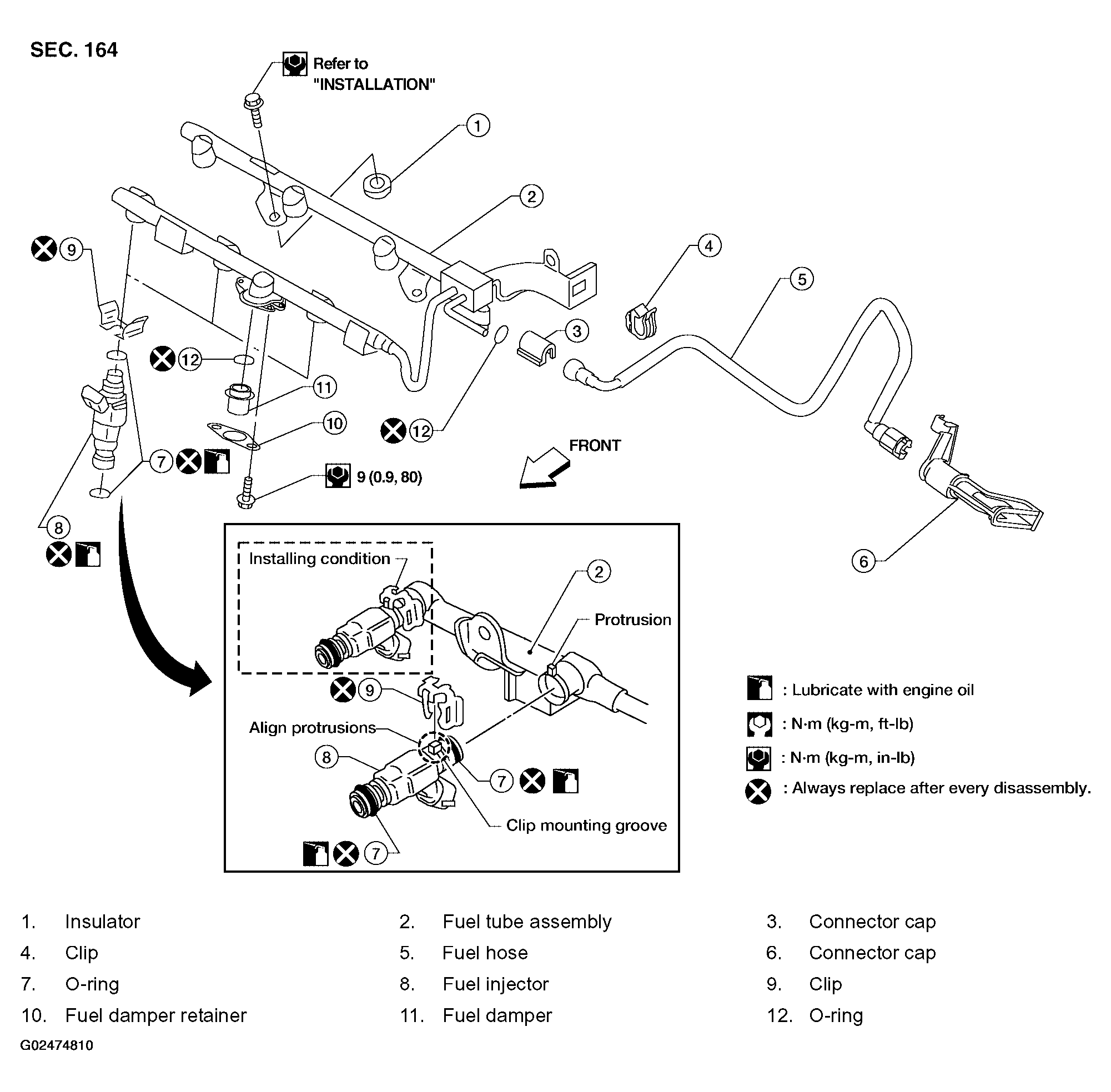

Fig 1: Removing Fuel Injector & Fuel Tube - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Apply new engine oil when installing the parts as specified to do so.
Do not remove or disassemble parts unless instructed as shown.
