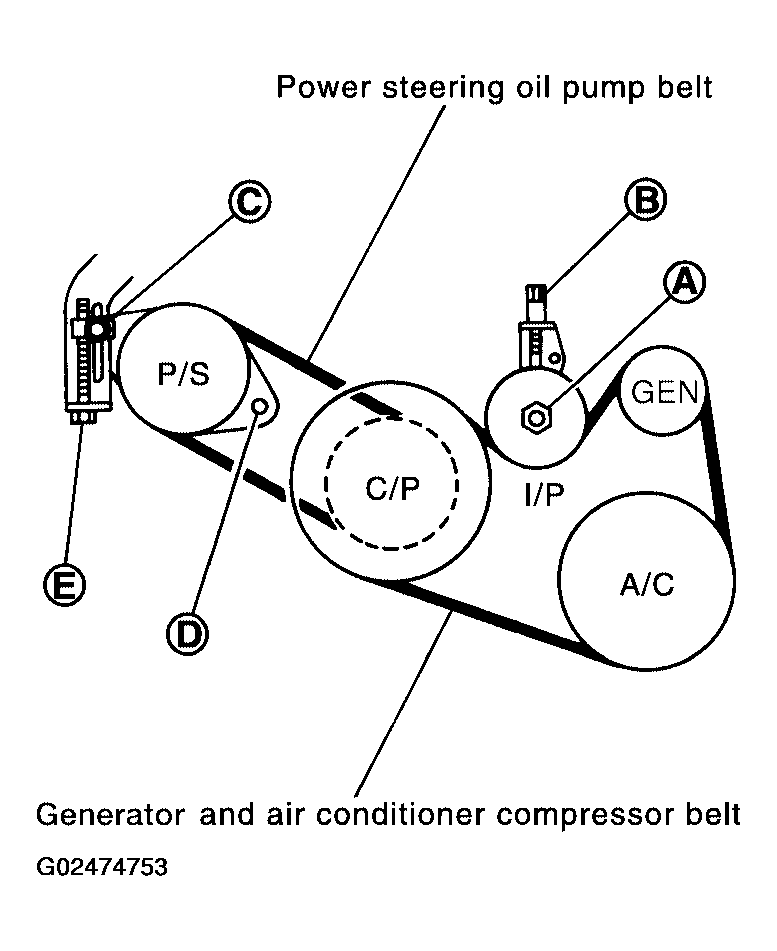

Power Steering Oil Pump Belt
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Remove engine undercover.
- Loosen adjusting bolt "C".
- Loosen power steering oil pump bolt "D".NOTE: Bolt head "D" is at the engine rear side.
- Adjust by turning the adjusting bolt "E".
- For specified belt tension, refer to CHECKING DRIVE BELTS .
NOTE: Adjusting bolt "E" is loosened with counterclockwise rotation. - Tighten adjusting bolt "C".
- Adjusting bolt "C": 28.0 N.m (2.9 kg-m, 21 ft-lb)
- Tighten power steering oil pump bolt "D".
- Power steering pump bolt "D": 43.2 N.m (4.4 kg-m, 32 ft-lb)
