Generator And Air Conditioner Compressor Belt
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Remove engine undercover.

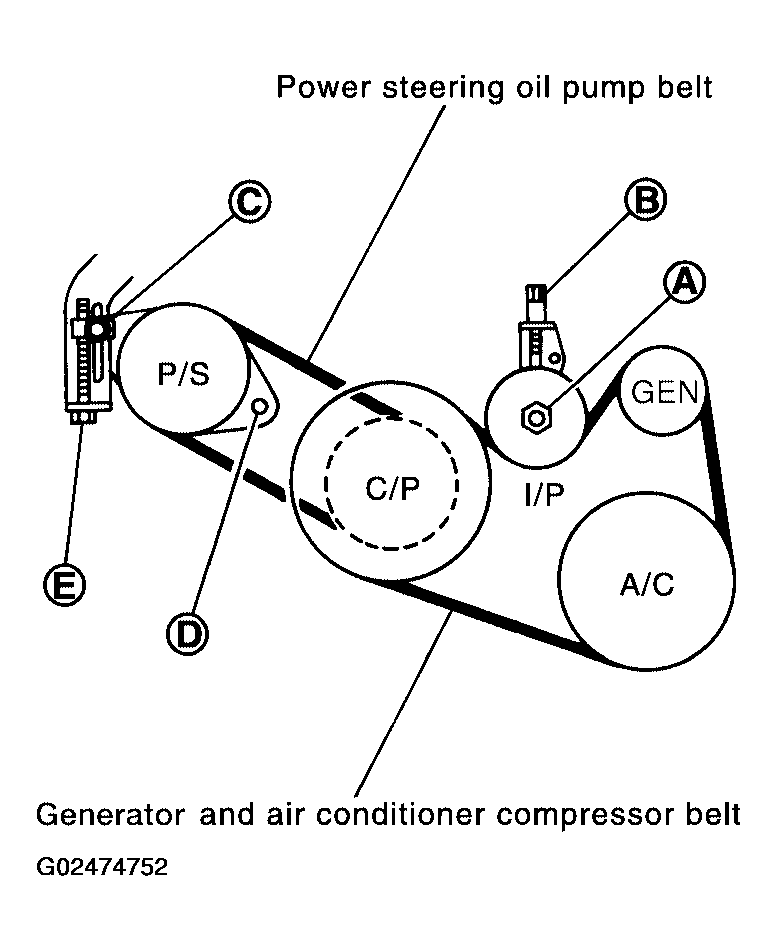

- Loosen idler pulley lock nut "A" and adjust by turning adjusting bolt "B".
- For specified belt tension, refer to CHECKING DRIVE BELTS .
- Tighten lock nut "A".
- Lock nut "A": 34.8 N.m (3.5 kg-m, 26 ft-lb)
- Tighten adjusting bolt "B".
- Adjusting bolt "B": 5.4 N.m (0.55 kg-m, 48 in-lb)
