Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove the intake manifold. Refer to REMOVAL AND INSTALLATION .
Remove the timing chains. Refer to TIMING CHAIN .
Remove the three way catalysts (manifolds), exhaust manifold heat shields and RH exhaust manifold. Refer to REMOVAL AND INSTALLATION .
Remove the intake and exhaust camshafts and the camshaft brackets.
- Mark the camshaft brackets so they are placed in the same position and direction for installation.
- Equally loosen the camshaft bracket bolts in several steps in the order as shown.

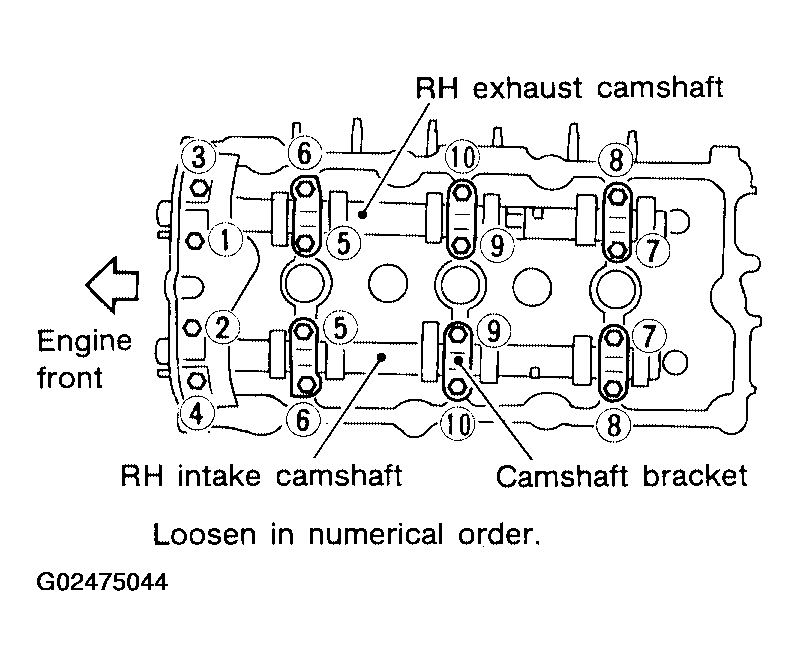

  Fig 1: Identifying Camshaft Bracket Bolts (RH) (With Loosening Sequence)
  Courtesy of NISSAN MOTOR CO., U.S.A.

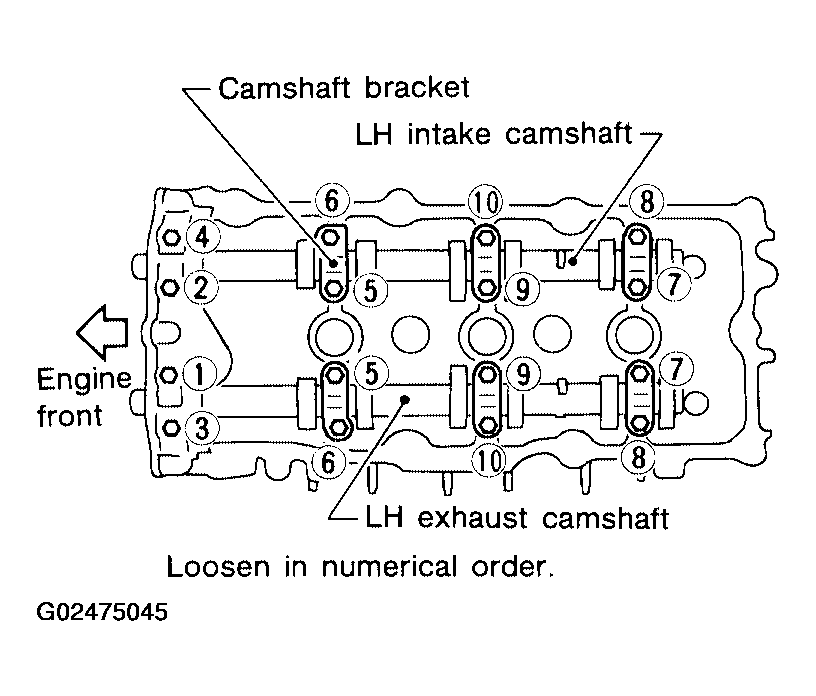

  Fig 2: Identifying Camshaft Bracket Bolts (LH) (With Loosening Sequence)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the water outlet. Refer to REMOVAL AND INSTALLATION - WATER OUTLET .
Remove the RH and LH cylinder head bolts, using power tool
- The bolts should be loosened gradually in three steps in the order as shown.

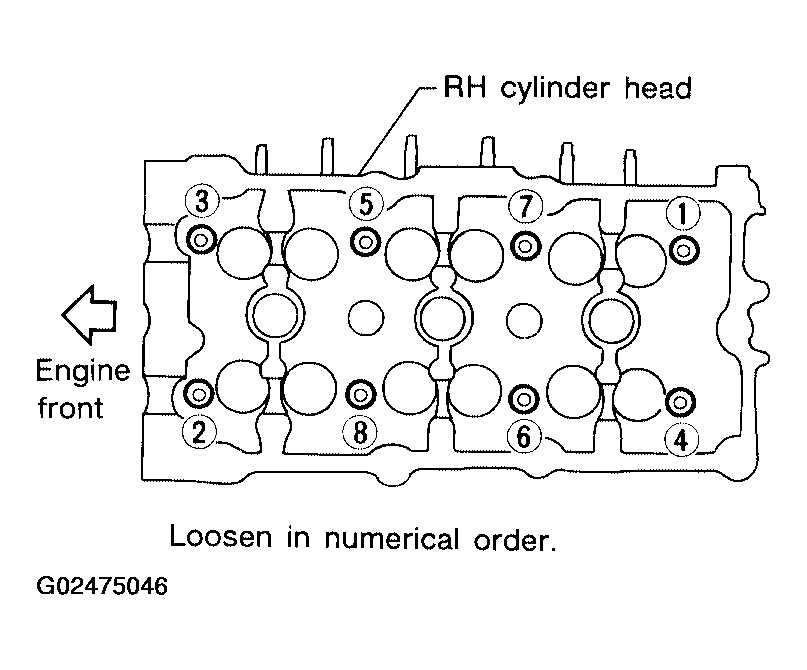

  Fig 3: Identifying Loosening Sequence Of Cylinder Head Bolts (RH)
  Courtesy of NISSAN MOTOR CO., U.S.A.

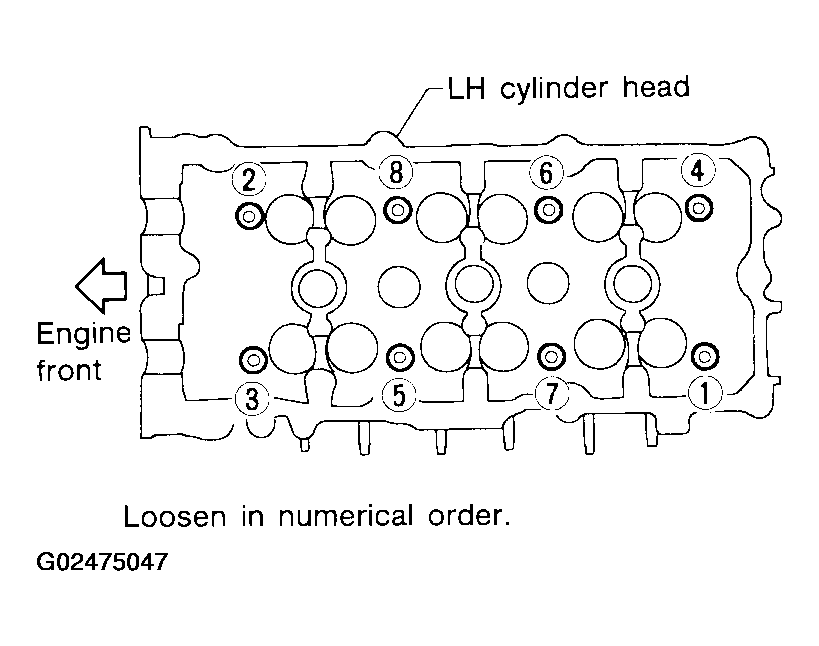

  Fig 4: Identifying Loosening Sequence Of Cylinder Head Bolts (LH)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove cylinder heads and gaskets.
- Discard the cylinder head gaskets and use new gaskets for installation.

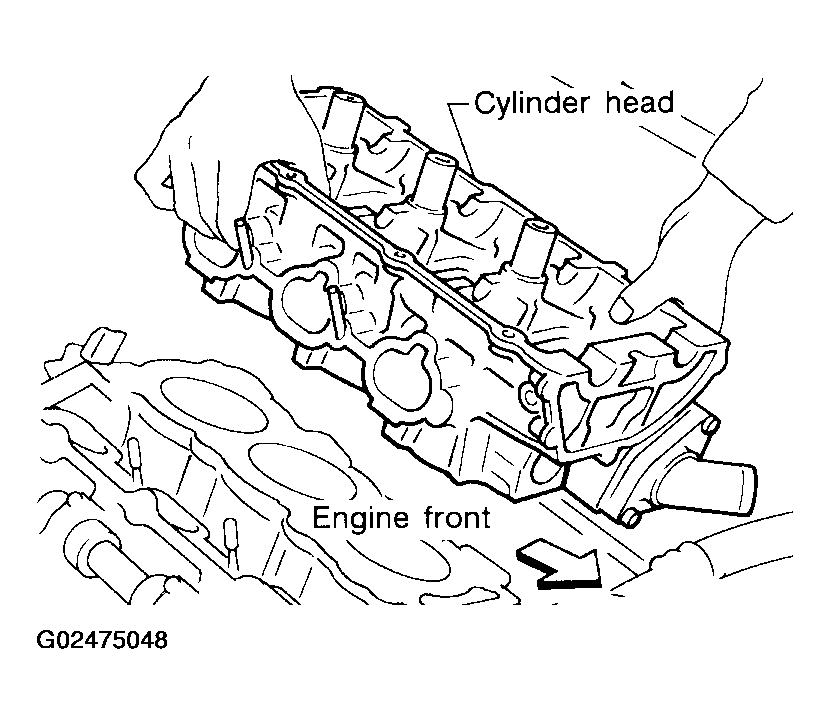

  Fig 5: Removing Cylinder Heads & Gaskets
  Courtesy of NISSAN MOTOR CO., U.S.A.
If necessary, remove the LH exhaust manifold. Loosen the exhaust manifold nuts in the order as shown.

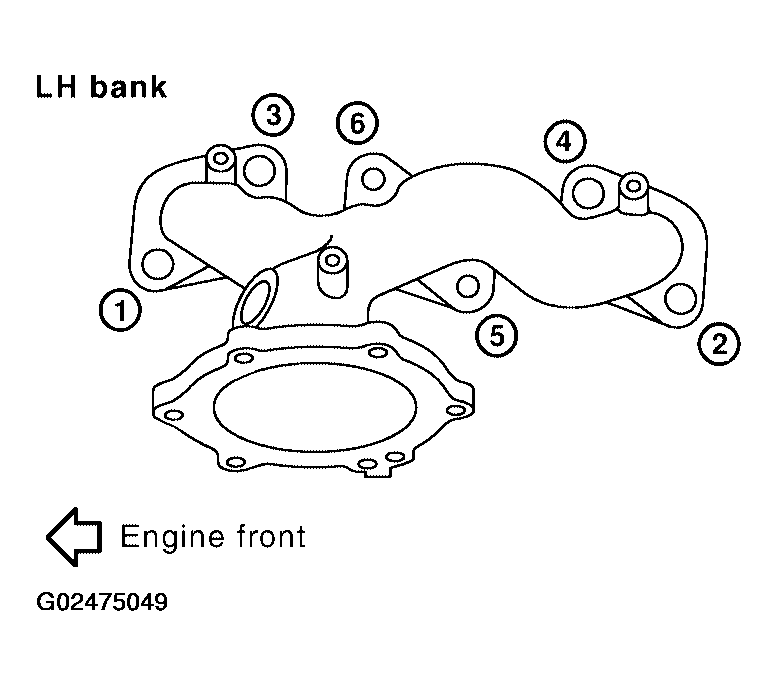

Fig 6: Removing LH Exhaust Manifold
Courtesy of NISSAN MOTOR CO., U.S.A.
