Valve Guide Replacement

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When valve guide is removed, replace with oversized [0.2 mm (0.008 in)] valve guide.

To remove valve guide, heat cylinder head to 110° - 130°C (230° - 266°F) by soaking in heated oil.
WARNING: Cylinder head is hot. Wear protective equipment to prevent getting burned.

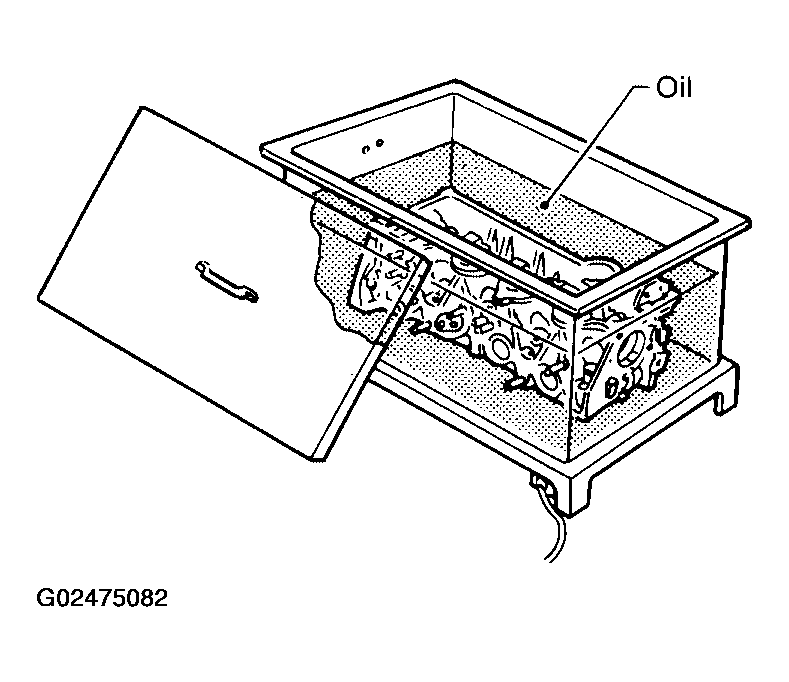

Fig 1: Heating Cylinder Head
Courtesy of NISSAN MOTOR CO., U.S.A.
Drive out the valve guide with a press (under a 20 kN (2.2 US ton) pressure] or hammer and suitable tool.

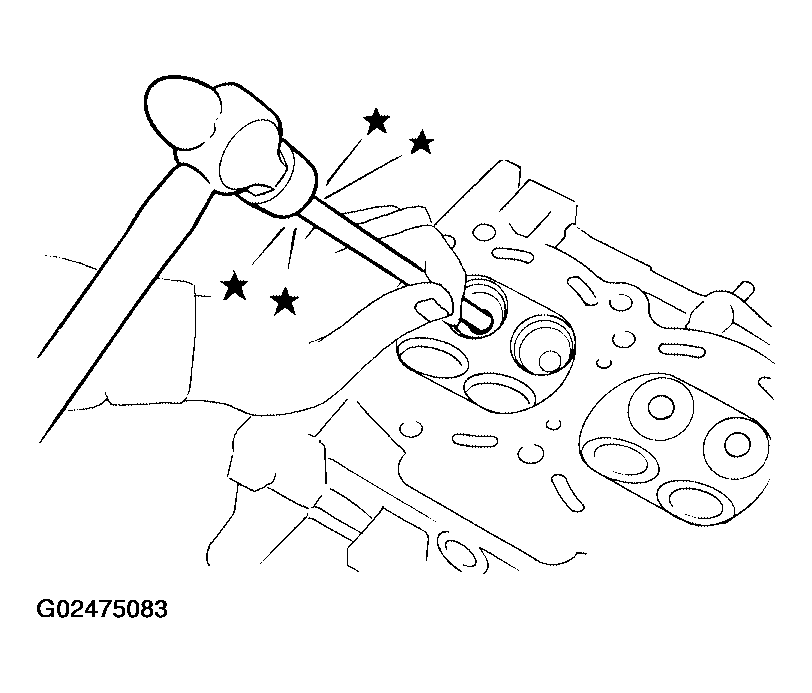

Fig 2: Removing Valve Guide
Courtesy of NISSAN MOTOR CO., U.S.A.

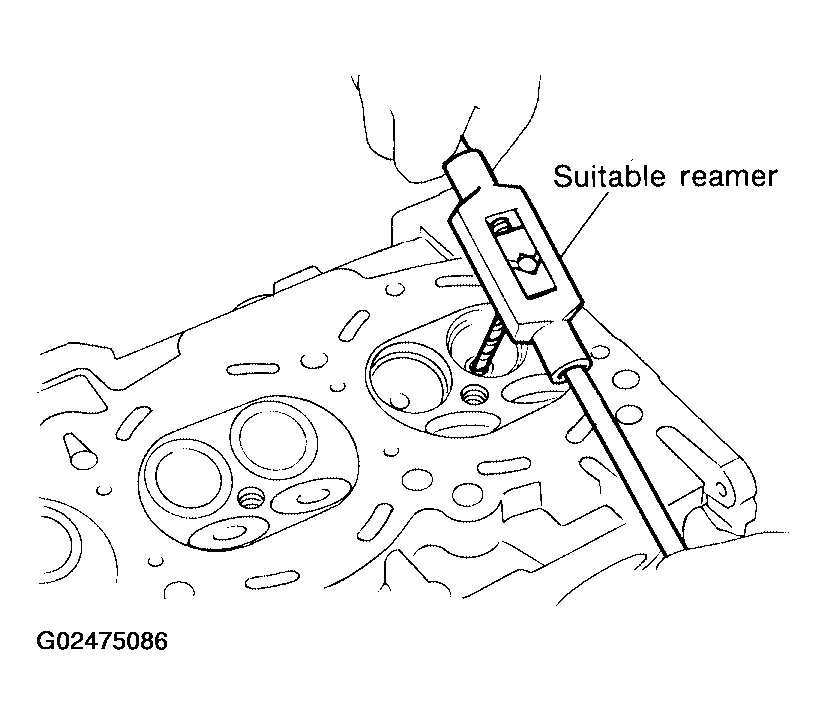

Ream cylinder head valve guide hole using suitable reamer.
- Valve guide hole diameter (for service parts), intake and exhaust: 10.175 - 10.196 mm (0.4006 - 0.4014 in)
Fig 3: Reaming Cylinder Head Valve Guide Hole
Courtesy of NISSAN MOTOR CO., U.S.A.
Heat cylinder head to 110° - 130°C (230° - 266°F) by soaking in heated oil and press new valve guide from camshaft side into the cylinder head to the dimensions as shown.
WARNING: Cylinder head is hot. Wear protective equipment to prevent getting burned.
- Projection "L": 12.6 - 12.8 mm (0.496 - 0.504 in)

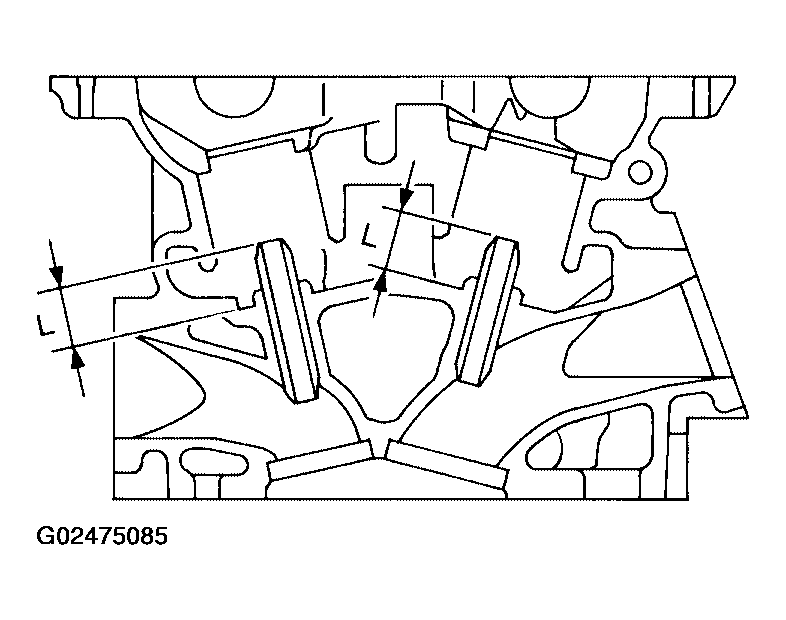

Fig 4: Checking Valve Guide Projection "L"
Courtesy of NISSAN MOTOR CO., U.S.A.
Apply a reamer finish to the valve guide, using suitable reamer.
- Intake and exhaust finished size: 6.000 - 6.018 mm (0.2362 - 0.2369 in)
Fig 5: Finishing To Valve Guide Using Reamer
Courtesy of NISSAN MOTOR CO., U.S.A.
