Outer Diameter Of Main Bearing Cap Bolts
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
Check specifications for the re-use of the main bearing cap bolts.

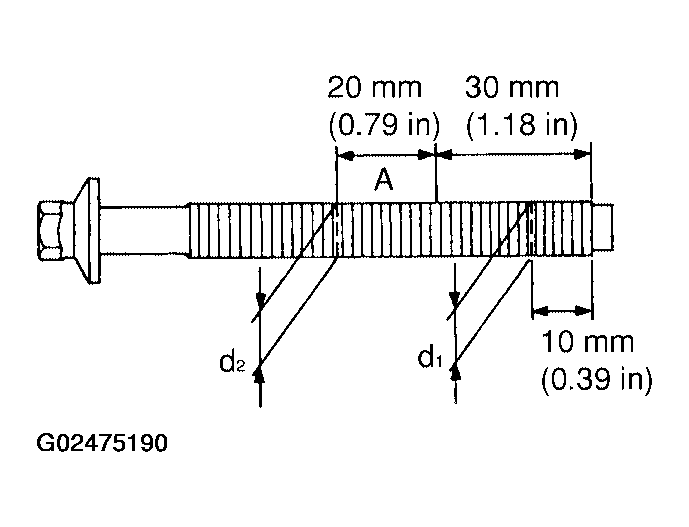

- Measure d1 and d2 as shown.
- For d2, select the minimum diameter in the measuring area.
- If the difference between d1 and d2 exceeds the limit, replace the bolts for assembly.
- Limit (d1 - d2): 0.11 mm (0.0043 in)
