Connecting Rod Bushing Oil Clearance (Small End)
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
(Connecting Rod small end oil clearance) = (Inner diameter of connecting rod small end) - (Outer diameter of piston pin)
- Standard: 0.005 - 0.017 mm (0.0002 - 0.0007 in)
- Limit: 0.030 mm (0.0012 in)
- If the measured value exceeds the standard, replace the connecting rod assembly and/or piston and piston pin assembly.
- If replacing the piston and piston pin assembly, refer to the Table for Selective Fitting for Piston to select the piston corresponding to the applicable bore grade of the cylinder block to be used. Refer to PISTON-TO-CYLINDER BORE CLEARANCE .
- If replacing the connecting rod assembly, refer to
CONNECTING ROD BUSHING OIL CLEARANCE (SMALL END) .

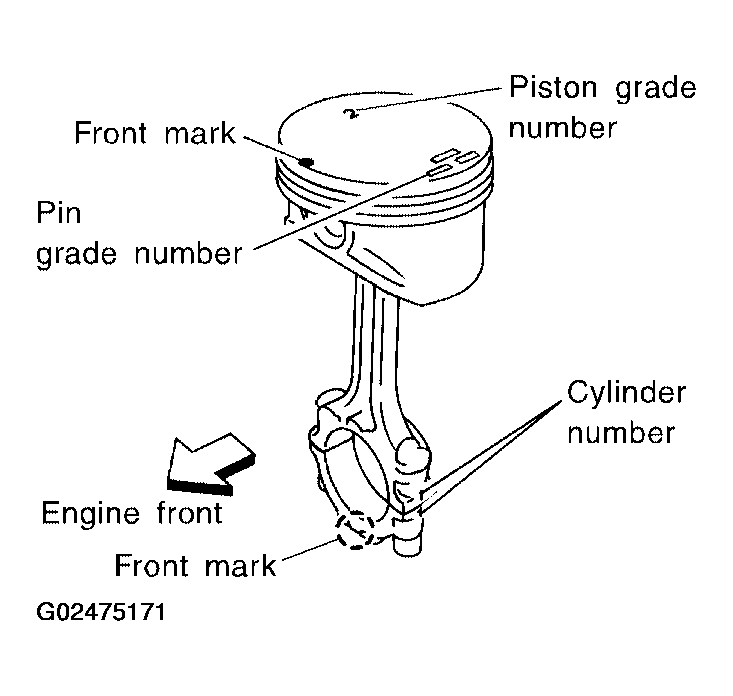

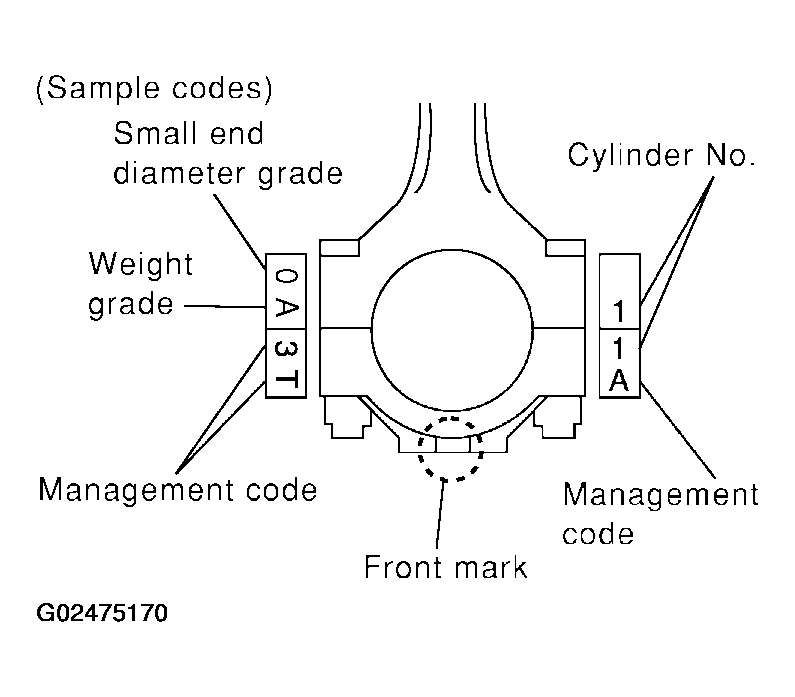

- Factory installed parts grading:
- Service parts apply only to grade 0.PISTON PIN SPECIFICATION
Unit: mm (in) Grade 0 1 Piston pin bushing inner diameter(1) 22.000-22.006 (0.8661 - 0.8664) 22.006-22.012 (0.8664 - 0.8666) Piston pin outer diameter 21.989-21.995 (0.8657 - 0.8659) 21.995 - 22. 001 (0.8659 - 0.8662) Piston pin hole diameter 21.993-21.999 (0.8659-0.8661) 21.999-22.005 (0.8661 - 0.8663) (1) After installing in connecting rod
