Connecting Rod Bend And Torsion

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Bend: Limit 0.15 mm (0.0059 in) per 100 mm (3.94 in) length
Torsion: Limit 0.30 mm (0.0118 in) per 100 mm (3.94 in) length

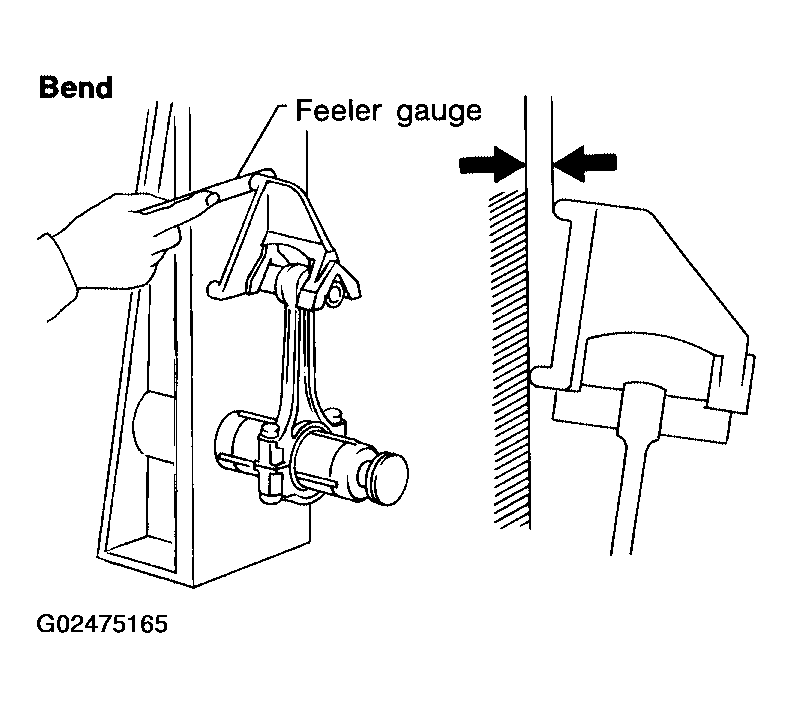

Fig 1: Checking Connecting Rod Bend

Courtesy of NISSAN MOTOR CO., U.S.A.

If it exceeds the limit, replace connecting rod assembly.

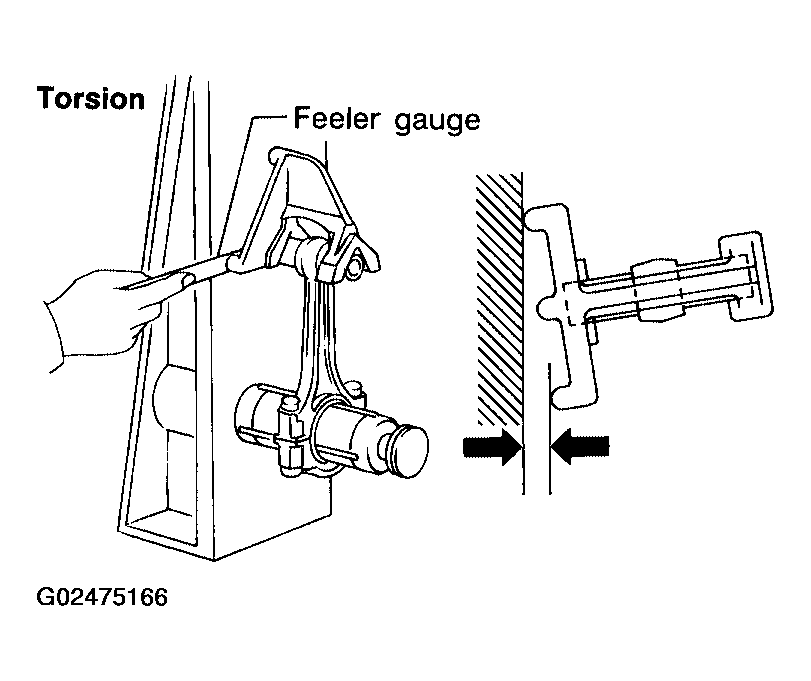

Fig 2: Checking Connecting Rod Torsion
Courtesy of NISSAN MOTOR CO., U.S.A.
