When New Cylinder Block and Crankshaft are Used

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. MAIN BEARING SELECTION TABLE  rows correspond to bearing housing grade on rear left side of cylinder block.

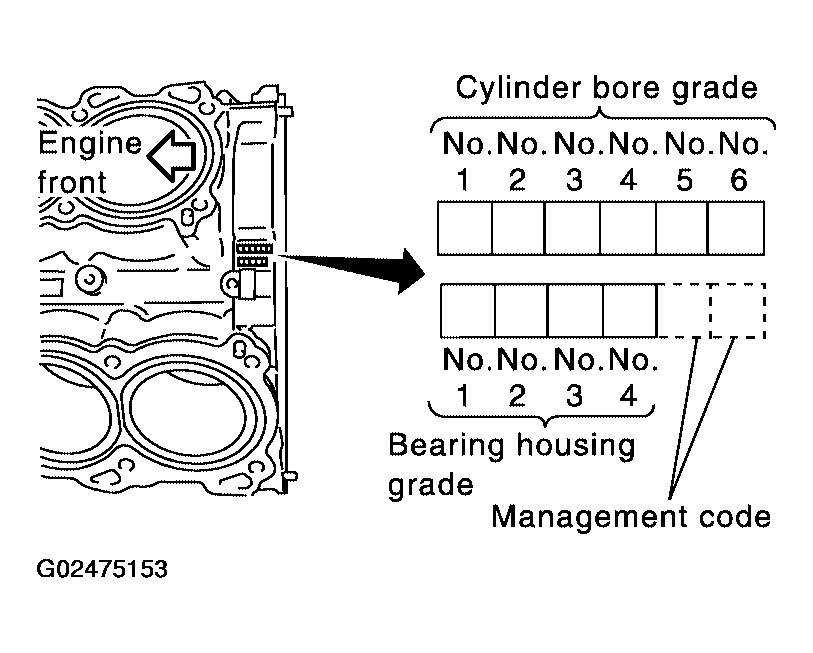

    Fig 1: Locating Cylinder Bore Grade
    G02475153Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Apply journal diameter grade stamped on crankshaft front side to column in MAIN BEARING SELECTION TABLE .
  3. Find sign (main bearing grade) at crossing of row and column in MAIN BEARING SELECTION TABLE .

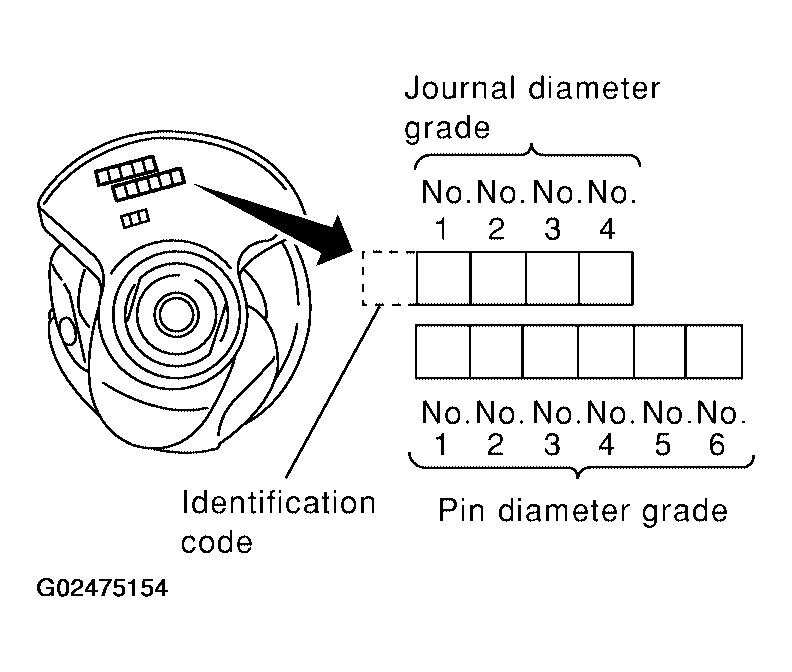

    Fig 2: Locating Journal Diameter Grade
    G02475154Courtesy of NISSAN MOTOR CO., U.S.A.
