Main Bearing Grade Table (All Journals)

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

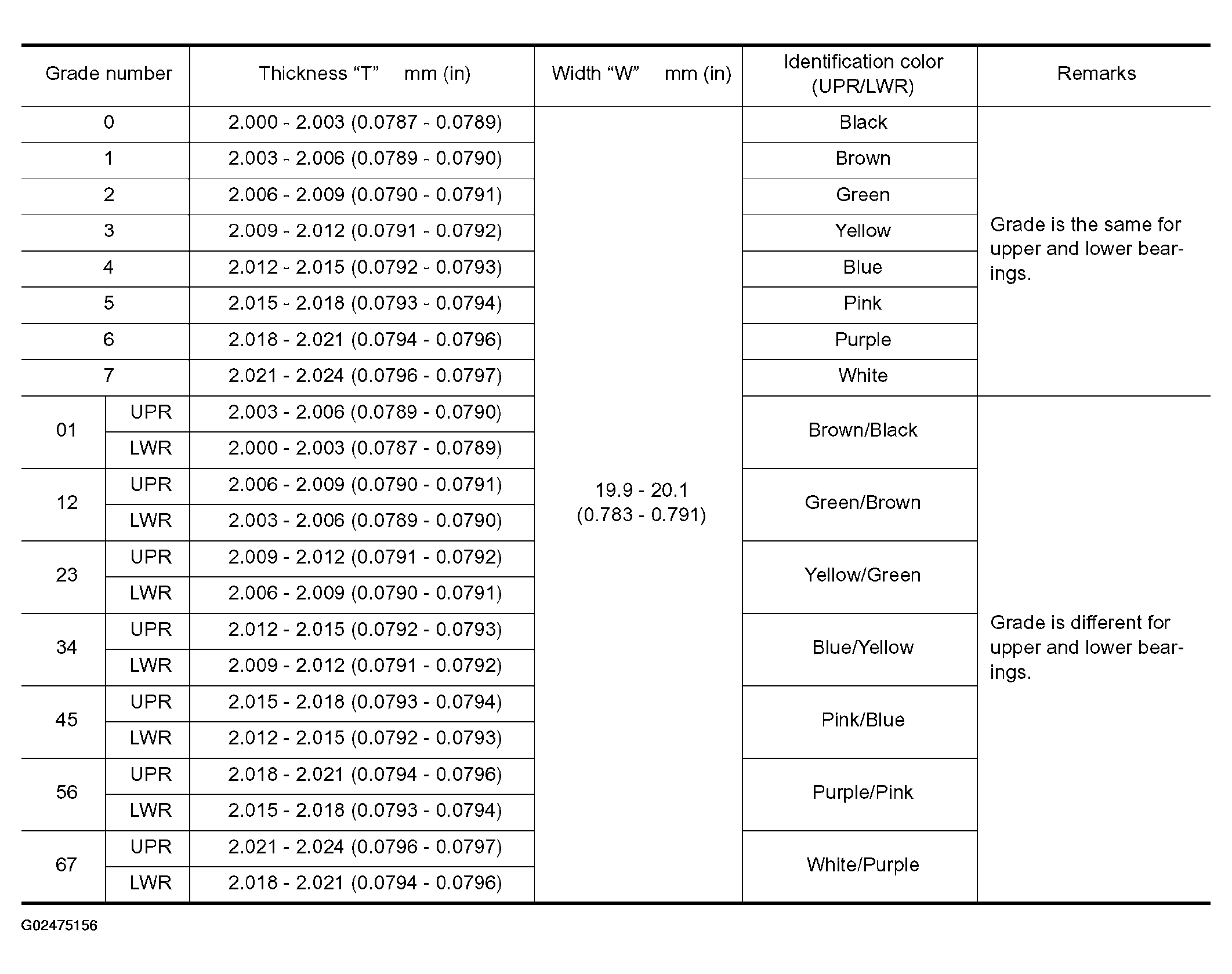

Fig 1: Main Bearing Grade Chart (All Journals)
G02475156Courtesy of NISSAN MOTOR CO., U.S.A.
